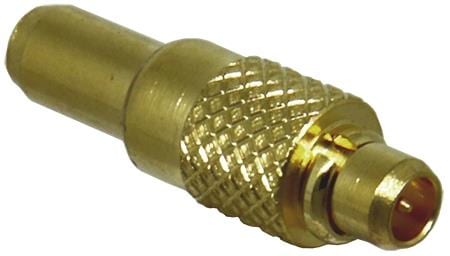

Linx Technologies - TE Connectivity CONMMCX007-R178 Connectors MMCX Male Cable End Crimp - RG-178 Cable
ModelCONMMCX007-R178
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Gender: Plug (Pin)
Polarity: Standard
Impedance: 50 Ohms
RF Series: MMCX
Body Style: Straight
Cable Type: RG-178
Body Finish: Nickel
Orientation: Straight
REACH - SVHC: Details
Body Material: Brass
Mating Cycles: 500 Min
Insertion Loss: 0.2 dB max at 1 GHz
Mounting Style: Cable Mount / Free Hanging
Voltage Rating: 170 VRMS
Contact Plating: Gold
Contact Material: Brass
Maximum Frequency: 6 GHz
Termination Style: Crimp
Insulation Resistance: 1 GOhms
Maximum Operating Temperature: + 165 C
Minimum Operating Temperature: - 65 C
