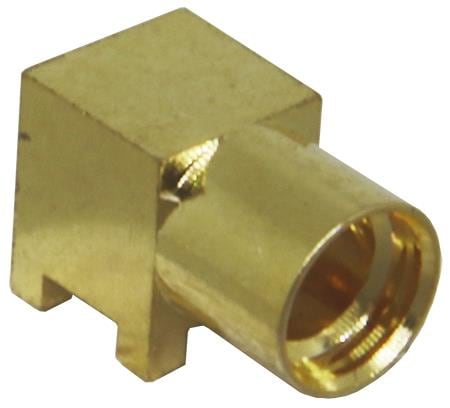

Linx Technologies - TE Connectivity CONMMCX002-SMD PCB Connectors MMCX Female Right Angle Surface Mount

Gender: Jack (Socket)

Polarity: Standard

Impedance: 50 Ohms

RF Series: MMCX

Body Style: Right Angle

Body Finish: Nickel

Orientation: Right Angle

Unit Weight: 875.596 mg

REACH - SVHC: Details

Body Material: Brass

Mating Cycles: 500 Min

Insertion Loss: 0.3 dB max at 1GHz

Mounting Style: SMD/SMT

Voltage Rating: 170 VRMS

Contact Plating: Gold

Contact Material: Beryllium Copper

Maximum Frequency: 6 GHz

Termination Style: Solder

Contact Termination: Solder

Insulation Resistance: 1 GOhms

Maximum Operating Temperature: + 165 C

Minimum Operating Temperature: - 65 C
