Gain: 7.7 dBi
VSWR: 2.3

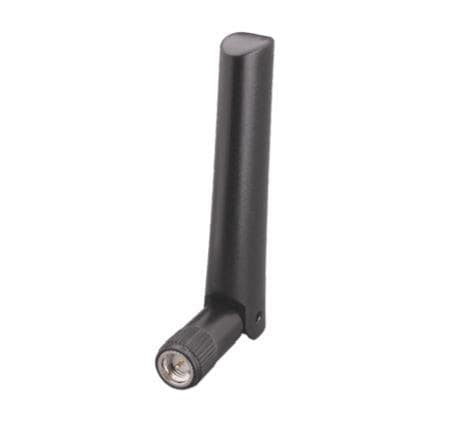

Style: Blade Tilt / Swivel
Width: 16.4 mm
Length: 85.5 mm
Diameter: 11.5 mm
Impedance: 50 Ohms
Wavelength: 1/2 Wave
Application: Wireless Applications, U-NII, ISM Applications, IoT Devices, Smart Home Networking, Sensing, Remote Monitoring
Polarization: Linear
Power Rating: 5 W
Mounting Style: Connector
Electrical Type: Dipole
Number of Bands: 3 Band
Center Frequency: 2.4 GHz, 5 GHz, 6 GHz
Mechanical Style: Whip
Maximum Frequency: 6 GHz
Minimum Frequency: 2.4 GHz
Termination Style: Connector
Protocol - Sub GHz: IoT, ISM, U-NII
Antenna Connector Type: RP-SMA Plug
Protocol - WiFi - 802.11: 802.11 b/g/n/ac/ax, WiFi 4, WiFi 5, WiFi 6, WiFi 6E
Maximum Operating Temperature: + 65 C
Minimum Operating Temperature: - 20 C
Protocol - Cellular, NBIoT, LTE: 2G/4G/5G, Cellular (NBIoT, LTE)
Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE
Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee), 802.16
