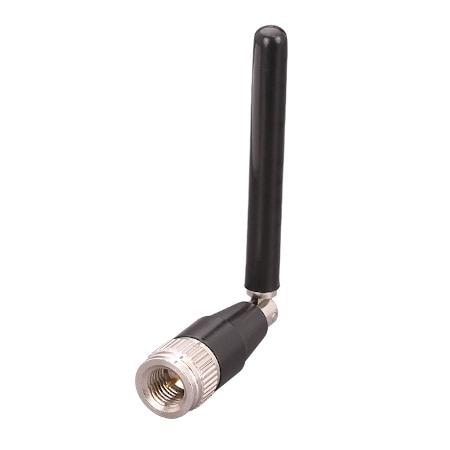

Linx Technologies - TE Connectivity ANT-LTE-MON-SMA-E Passive Antenna Antenna MON-E LTE/GPS Swivel SMA

Gain: 1.1 dBi, 1.3 dBi, 3.1 dBi, 3.3 dBi, 4.5 dBi, 5.1 dBi

VSWR: 1.3, 1.9, 2.2, 2.9, 3.2, 3.6

Style: Tilt/Swivel

Width: 28 mm

Length: 72.4 mm

Diameter: 10 mm

Impedance: 50 Ohms

Technology: Cellular

Wavelength: 1/4 Wave

Application: Worldwide Cellular, Low Power Wide Area, ISM Applications, FirstNet Public Safety, IoT Devices, Gateways

Unit Weight: 11.884 g

Polarization: Linear

Power Rating: 10 W

REACH - SVHC: Details

Mounting Style: Panel Mount

Electrical Type: Monopole

Number of Bands: 6 Band

Center Frequency: 700 MHz, 800 MHz, 850 MHz, 900 MHz, 1500 MHz, 1800 MHz, 2400 MHz, 2700 MHz, 3300 MHz, 3800 MHz

Mechanical Style: Whip

Ground Plane Size: 102 mm x 102 mm

Maximum Frequency: 3.8 GHz

Minimum Frequency: 698 MHz

Termination Style: Connector

Antenna Connector Type: SMA Plug

Maximum Operating Temperature: + 130 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 4G/5G, Cellular (NBIoT, LTE)

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee), 802.16
