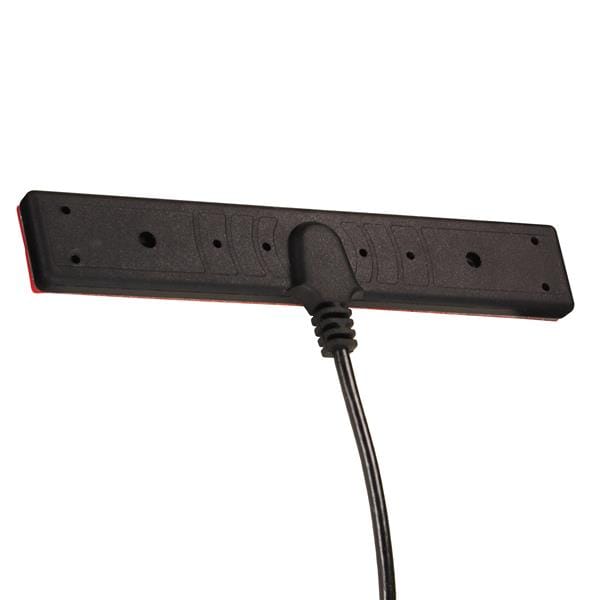

Linx Technologies - TE Connectivity ANT-LTE-HDP-2000-SMA Passive Antenna Antenna Horiz 1/2 Wave Dipole LTE 2M SMA

Gain: 3.5 dBi, 4.5 dBi, 3.25 dBi, 4.5 dBi

VSWR: 1.75, 1.35, 1.3, 1.25

Style: T-Bar

Width: 17 mm

Height: 5.5 mm

Length: 104 mm

Bandwidth: 262 MHz, 460 MHz, 100 MHz, 200 MHz

IP Rating: IP67

Impedance: 50 Ohms

Cable Type: 2 M RG174/U

Wavelength: 1/2 Wave

Application: Worldwide Cellular, Low Power Wide Area, ISM Applications, Global Navigation

Unit Weight: 42 g

Cable Length: 2 m

Polarization: Linear

Power Rating: 10 W

Mounting Style: Adhesive Mount

Electrical Type: Dipole

Number of Bands: 6 Band

Center Frequency: 829 MHz, 1.94 GHz, 2.35 GHz, 2.6 GHz

Mechanical Style: Module

Maximum Frequency: 2.7 GHz

Minimum Frequency: 698 MHz

Termination Style: Connector

Protocol - Sub GHz: RFID, IoT, ISM

Antenna Connector Type: SMA Male

Protocol - GPS, GLONASS: GNSS

Protocol - WiFi - 802.11: 802.11, WiFi, WLAN, WiMAX

Maximum Operating Temperature: + 80 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE), GSM, UMTS

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee), 802.16
