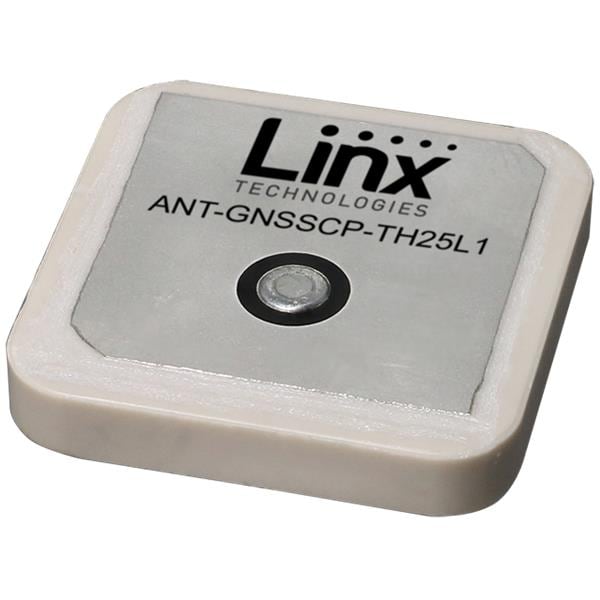

Linx Technologies - TE Connectivity ANT-GNSSCP-TH25L1 Passive Antenna Antenna GNSS L1 25x25 THM

Gain: 3.5 dBi, 4 dBi, 4 dBi

VSWR: 5.6, 2.1, 1.7

Style: Ceramic

Width: 25.1 mm

Height: 4 mm

Length: 25.1 mm

Impedance: 50 Ohms

Application: Global Navigation, Timing Solutions, Automotive Location

Unit Weight: 9.200 g

Polarization: RHCP

Power Rating: 8 W

REACH - SVHC: Details

Mounting Style: PCB Mount

Electrical Type: Embedded

Number of Bands: 3 Band

Center Frequency: 1.57542 GHz, 1.58974 GHz, 1.602 GHz

Mechanical Style: Patch

Maximum Frequency: 1.60868 GHz

Minimum Frequency: 1.56724 GHz

Termination Style: Pin

Protocol - GPS, GLONASS: BEIDOU, Galileo, GLONASS, GPS, IRNSS, QZSS

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C
