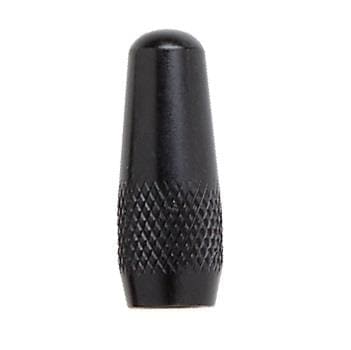

Linx Technologies - TE Connectivity ANT-ELE-S01-011 Passive Antenna 2.45GHz Stub Element for MAG Bases

VSWR: 2

Style: Straight

Width: 10 mm

Length: 25.91 mm

Diameter: 8.5 mm

Bandwidth: 100 MHz

Impedance: 50 Ohms

Wavelength: 1/2 Wave

Application: Bluetooth, WiFi, Zigbee, Thread

Unit Weight: 14.734 g

Polarization: Linear

Mounting Style: Screw Mount

Electrical Type: Dipole

Number of Bands: 1 Band

Center Frequency: 2.45 GHz

Mechanical Style: Whip

Maximum Frequency: 2.5 GHz

Minimum Frequency: 2.4 GHz

Termination Style: Screw

Protocol - Sub GHz: IoT, ISM

Protocol - WiFi - 802.11: WiFi

Maximum Operating Temperature: + 80 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee), 802.16
