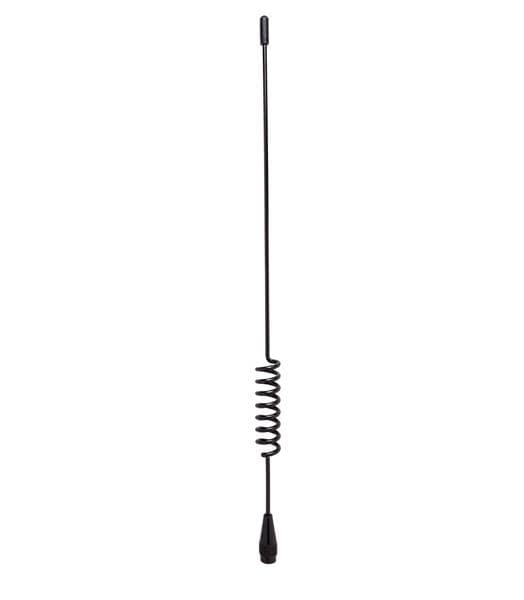

Linx Technologies - TE Connectivity ANT-ELE-S01-005 Passive Antenna 860-960MHz Whip Elemnt for MAG Bases

Gain: 3.8 dBi

VSWR: 1.5

Style: Straight

Length: 295.4 mm

Diameter: 9 mm

Bandwidth: 136 MHz

Impedance: 50 Ohms

Wavelength: 1/2 Wave

Application: Cellular

Unit Weight: 38.471 g

Polarization: Linear

Mounting Style: Screw Mount

Electrical Type: Dipole

Number of Bands: 1 Band

Center Frequency: 892 MHz

Mechanical Style: Whip

Maximum Frequency: 960 MHz

Minimum Frequency: 860 MHz

Termination Style: Screw

Maximum Operating Temperature: + 80 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE), GSM, UMTS
