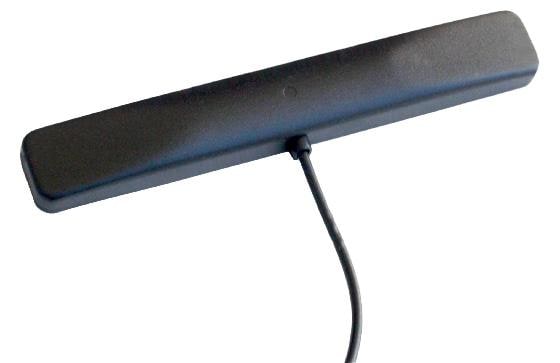

Linx Technologies - TE Connectivity ANT-DB1-HDP-SMA Passive Antenna Horizontal Dual Band Ant. SMA Connector

Gain: 0.2 dBi, - 3.3 dBi, 0 dBi

VSWR: 1.5, 1.9, 1.9

Style: T-Bar

Width: 20 mm

Height: 12.1 mm

Length: 132.3 mm

Bandwidth: 136 MHz, 280 MHz, 80 MHz

Impedance: 50 Ohms

Cable Type: 3 M RG174

Wavelength: 1/2 Wave

Application: Cellular, WiFi, LTE, CAT-M1, NB-IoT

Cable Length: 3 m

Polarization: Linear

Mounting Style: Adhesive Mount

Electrical Type: Dipole

Number of Bands: 2 Band

Center Frequency: 892 MHz, 1.85 GHz, 2.45 GHz

Mechanical Style: Module

Maximum Frequency: 2.48 GHz

Minimum Frequency: 824 MHz

Termination Style: Connector

Protocol - Sub GHz: IoT, ISM

Antenna Connector Type: SMA Male

Protocol - WiFi - 802.11: 802.11, LoRaWAN, SigFox, WLAN

Maximum Operating Temperature: + 80 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE), GSM, UMTS

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee), 802.16
