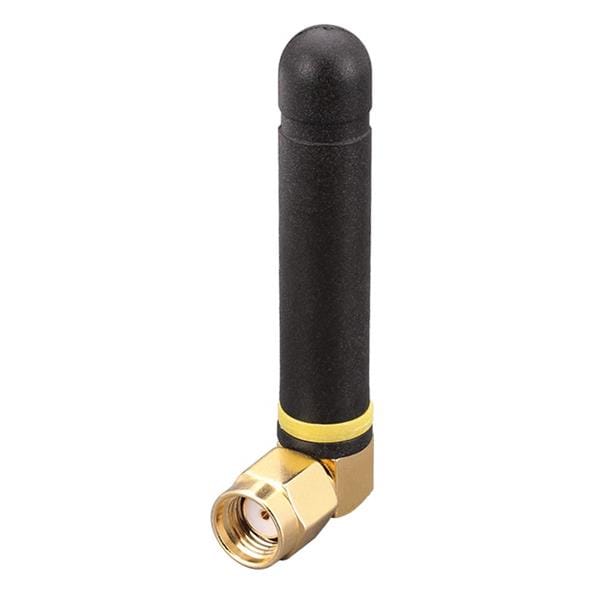

Linx Technologies - TE Connectivity ANT-916-CW-RAH-SMA Passive Antenna Antenna 1/4 Wave R-Angle 916MHz SMA

Gain: 2.2 dBi

VSWR: 1.9

Style: Stubby Right Angle

Width: 17 mm

Length: 46.5 mm

Diameter: 8 mm

Impedance: 50 Ohms

Wavelength: 1/4 Wave

Application: Remote Control, Monitoring, Sensing Networks

Unit Weight: 8.431 g

For Use With: Metal / Plastic Enclosures

Polarization: Linear

REACH - SVHC: Details

Mounting Style: Panel Mount

Electrical Type: Monopole

Number of Bands: 1 Band

Center Frequency: 916 MHz

Mechanical Style: Helical

Ground Plane Size: 101.6 mm x 101.6 mm

Maximum Frequency: 970 MHz

Minimum Frequency: 850 MHz

Termination Style: Connector

Protocol - Sub GHz: RFID, ISM

Antenna Connector Type: SMA Male

Protocol - WiFi - 802.11: LoRaWAN, Sigfox

Maximum Operating Temperature: + 90 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE), GSM, UMTS
