Gain: 3.6 dBi
VSWR: 2

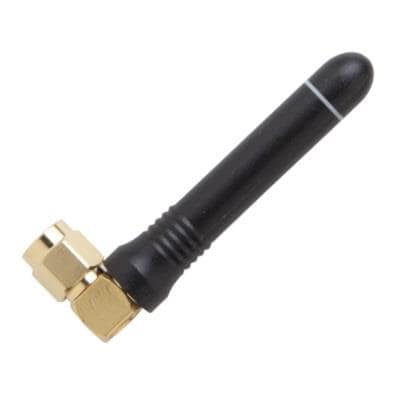

Style: Stubby Right Angle
Width: 16.6 mm
Length: 53.5 mm
Diameter: 8 mm
Bandwidth: 30 MHz
Impedance: 50 Ohms
Wavelength: 1/4 Wave
Application: Remote Control, Monitoring, Sensing Networks
Unit Weight: 10.500 g
Polarization: Linear
REACH - SVHC: Details
Mounting Style: Panel Mount
Electrical Type: Monopole
Number of Bands: 1 Band
Center Frequency: 868 MHz
Mechanical Style: Whip
Ground Plane Size: 102 mm x 102 mm
Maximum Frequency: 880 MHz
Minimum Frequency: 850 MHz
Termination Style: Connector
Protocol - Sub GHz: RFID
Antenna Connector Type: SMA Male
Protocol - WiFi - 802.11: LoRaWAN, Sigfox
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 20 C
Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE), GSM, UMTS
