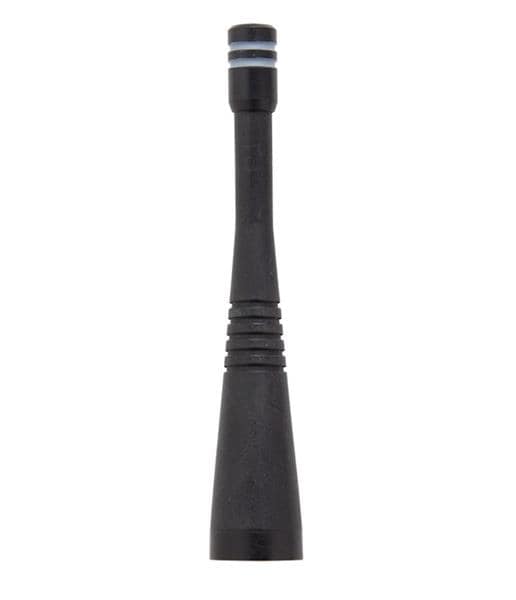

Linx Technologies - TE Connectivity ANT-868-CW-QW Passive Antenna RPSMA Connectorized 1/4 Wave Whip 868MHz

Gain: 1.6 dBi

VSWR: 1.9

Style: Straight

Length: 84 mm

Diameter: 14.5 mm

Bandwidth: 200 MHz

Impedance: 50 Ohms

Wavelength: 1/4 Wave

Application: Remote Control, Monitoring, Sensing Networks

Unit Weight: 13.567 g

Polarization: Linear

Mounting Style: Panel Mount

Electrical Type: Monopole

Number of Bands: 1 Band

Center Frequency: 868 MHz

Mechanical Style: Whip

Ground Plane Size: 102 mm x 102 mm

Maximum Frequency: 950 MHz

Minimum Frequency: 750 MHz

Termination Style: Connector

Protocol - Sub GHz: RFID

Antenna Connector Type: RP-SMA Male

Protocol - WiFi - 802.11: LoRaWAN, Sigfox

Maximum Operating Temperature: + 90 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE), GSM, UMTS
