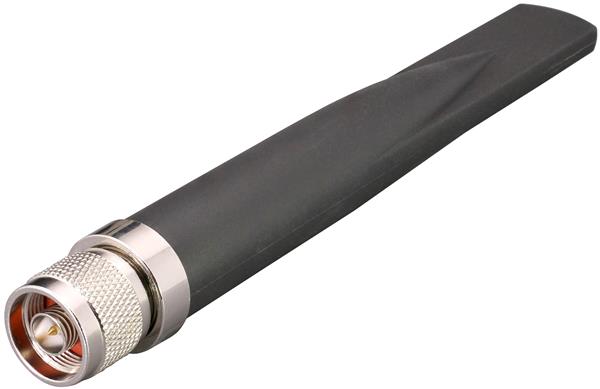

Linx Technologies - TE Connectivity ANT-5GW-IPW3-NP 1/2 Wave 5G/4G/LTE Cellular Wideband Whip Antenna, External Mount, IP67, N Plug

Gain: 3.1 dBi, 4.4 dBi, 4.8 dBi, 6.1 dBi, 5.7 dBi, 8.0 dBi, 5.6 dBi, 4.4 dBi, 5.8 dBi, 7.2 dBi

VSWR: 1.9, 2.2, 2.0, 4.8, 1.9, 2.4, 2.4, 2.0, 2.2, 2.2

Style: Whip

Width: 21 mm

Length: 176 mm

IP Rating: IP67

Impedance: 50 Ohms

Wavelength: 1/2 Wave

Application: 5G, LTE, LTE-M (Cat-M1), NB-IoT

Polarization: Linear

Power Rating: 2 W

REACH - SVHC: Details

Mounting Style: Connector

Electrical Type: Dipole

Frequency Range: 617 MHz to 698 MHz, 698 MHz to 803 MHz, 791 MHz to 960 MHz, 1710 MHz to 2200 MHz, 2300 MHz to 2400 MHz, 2496 MHz to 2690 MHz, 3300 MHz to 3800 MHz, 3550 MHz to 3700 MHz , 3700 MHz to 4200 MHz, 4400MHz to 5000 MHz

Number of Bands: 10 Band

Center Frequency: 600 MHz, 700 MHz, 800 MHz, 850 MHz, 900 MHz, 1.7 GHz, 1.8 GHz, 1.9 GHz, 2.1 GHz, 2.3 GHz, 2.5 GHz, 3.3 GHz, 3.5 GHz, 3.7 GHz, 4.9 GHz

Mechanical Style: Whip

Ground Plane Size: 300 mm x 300 mm

Termination Style: N Type Male

Antenna Connector Type: N Type Male

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
