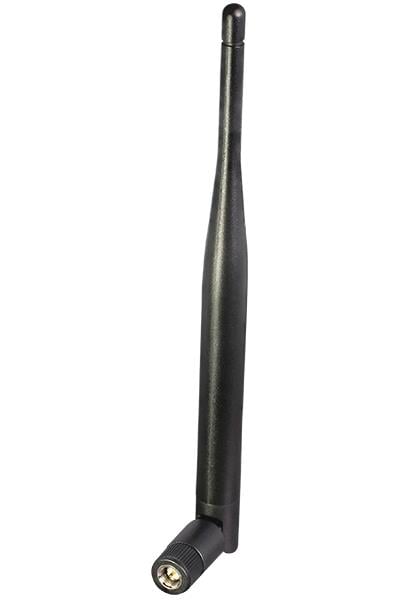

Linx Technologies - TE Connectivity ANT-5GMWP1-SMA Passive Antenna Antenna Whip 5G/CBRS Swivel SMA

Gain: 4.9 dBi

VSWR: 1.7

Style: Tilt/Swivel

Length: 195 mm

Diameter: 13 mm

Impedance: 50 Ohms

Wavelength: 1/2 Wave

Application: Private Cellular Networks, Public Safety Networks

Polarization: Linear

Power Rating: 10 W

Mounting Style: Connector

Electrical Type: Dipole

Number of Bands: 1 Band

Center Frequency: 3.625 GHz, 3.95 GHz, 4.965 GHz

Mechanical Style: Whip

Maximum Frequency: 5 GHz

Minimum Frequency: 3.3 GHz

Termination Style: Connector

Protocol - Sub GHz: IoT

Antenna Connector Type: SMA Plug

Maximum Operating Temperature: + 65 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 5G, Cellular (NBIoT, LTE), GSM

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE
