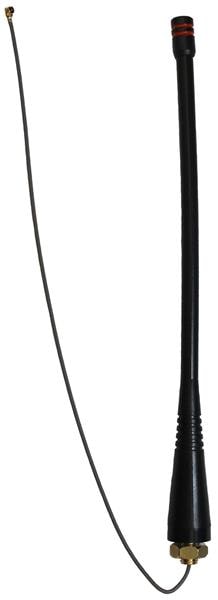

Linx Technologies - TE Connectivity ANT-433-PW-QW-UFL Passive Antenna 433MHz 1/4 Wave Whip Permanent Mount, UFL

Gain: 3.3 dBi

VSWR: 1.9

Style: Straight

Length: 173 mm

Diameter: 14.5 mm

Bandwidth: 70 MHz

Impedance: 50 Ohms

Cable Type: 216 mm RF1.32

Wavelength: 1/4 Wave

Application: ISM, Remote Control, Alarms, Security Systems

Unit Weight: 26.614 g

Cable Length: 216 mm

For Use With: 410 MHz, 450 MHz, LTE Band 72, LTE Band 73, LTE Band 87, LTE Band 88, Personal Mobile Radio - PMR

Polarization: Linear

Mounting Style: Direct / Permanent Mount

Electrical Type: Monopole

Number of Bands: 1 Band

Center Frequency: 433 MHz

Mechanical Style: Whip

Ground Plane Size: 102 mm x 102 mm

Maximum Frequency: 470 MHz

Minimum Frequency: 400 MHz

Termination Style: Connector

Protocol - Sub GHz: ISM

Antenna Connector Type: MHF / U.FL

Protocol - WiFi - 802.11: LoRaWAN, WiFi, WLAN

Maximum Operating Temperature: + 90 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE), GSM
