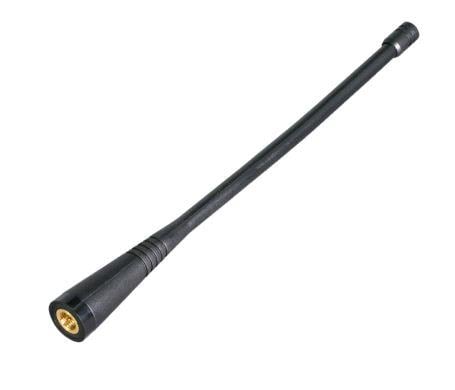

Linx Technologies - TE Connectivity ANT-410-CW-QW-SMA Passive Antenna Antenna 1/4 Wave Whip 410MHz RPS

Gain: - 1.2 dBi

VSWR: 1.8

Style: Straight

Length: 177.2 mm

Impedance: 50 Ohms

Wavelength: 1/4 Wave

Application: 5G NR bands 87 and 88, Handheld Devices, IoT

Unit Weight: 19.500 g

Polarization: Linear

Power Rating: 10 W

Mounting Style: Panel Mount

Electrical Type: Monopole

Number of Bands: 1 Band

Center Frequency: 410 MHz

Mechanical Style: Whip

Ground Plane Size: 102 mm x 102 mm

Maximum Frequency: 430 MHz

Minimum Frequency: 410 MHz

Termination Style: Connector

Antenna Connector Type: SMA Male

Maximum Operating Temperature: + 90 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE), GSM
