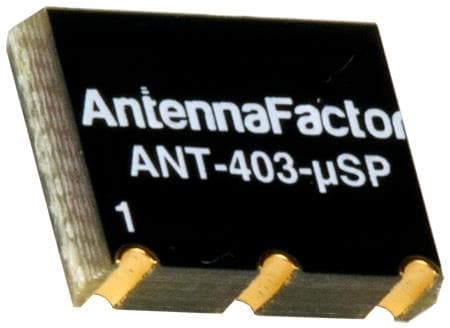

Linx Technologies - TE Connectivity ANT-403-USP Passive Antenna microSplatch Planar Antenna 403MHz, SMD

Gain: - 8.7 dBi

VSWR: 1.9

Width: 9.14 mm

Height: 2.62 mm

Length: 12.7 mm

Bandwidth: 6 MHz

Impedance: 50 Ohms

Technology: Monopole

Wavelength: 1/4 Wave

Application: ISM, Remote Control, Alarms, Security Systems

Polarization: Linear

Mounting Style: PCB Mount

Electrical Type: Embedded Monopole

Number of Bands: 1 Band

Center Frequency: 403 MHz

Mechanical Style: Chip

Ground Plane Size: 39 mm x 80 mm

Maximum Frequency: 406 MHz

Minimum Frequency: 400 MHz

Termination Style: SMD/SMT

Protocol - Sub GHz: MICS

Maximum Operating Temperature: + 130 C

Minimum Operating Temperature: - 40 C
