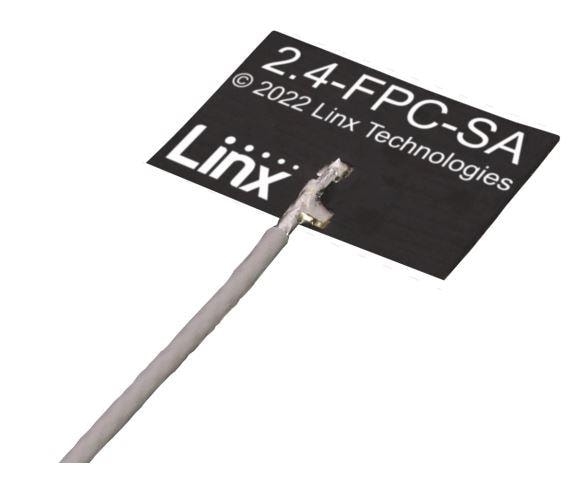

Linx Technologies - TE Connectivity ANT-2.4-FPC-SAH150M4 FPC Antenna 2.4 GHz FPC antenna, 12x8mm, adhesive, 150mm cable, MHF4

Gain: 0.1 dBi

VSWR: 4.1

Width: 8.2 mm

Height: 0.1 mm

Length: 12.4 mm

Bandwidth: 2.4 GHz

Impedance: 50 Ohms

Cable Type: Coaxial

Wavelength: 1/2 Wave

Application: 2.4 GHz ISM, Bluetooth, ZigBee

Cable Length: 150 mm

Polarization: Linear

Power Rating: 2 W

Mounting Style: Adhesive Mount

Electrical Type: Dipole

Number of Bands: 1 Band

Mechanical Style: Rectangular

Maximum Frequency: 2.5 GHz

Minimum Frequency: 2.4 GHz

Termination Style: Connector

Antenna Connector Type: MHF4

Protocol - WiFi - 802.11: 802.11, WiFi

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
