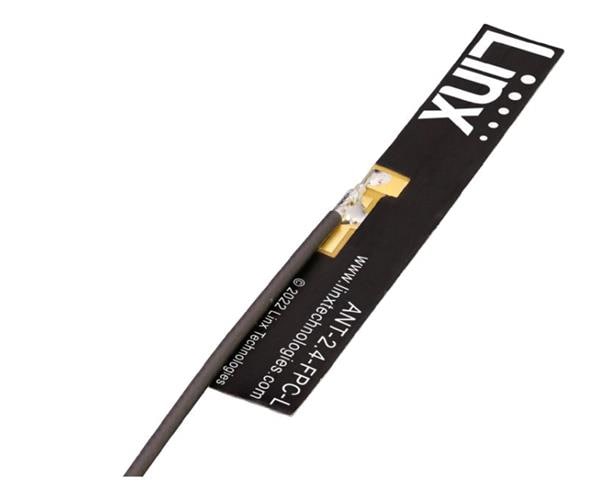

Linx Technologies - TE Connectivity ANT-2.4-FPC-LV100MX FPC Antenna 2.4 GHz FPC antenna, 45x7mm, inline cable egress, 100mm cable, MMCX

Gain: 4.3 dBi

VSWR: 1.7

Style: I-Bar Flex

Width: 7.2 mm

Height: 0.1 mm

Length: 45.2 mm

Impedance: 50 Ohms

Cable Type: 1.13 mm Coax

Wavelength: 1/2 Wave

Cable Length: 100 mm

Polarization: Linear

Power Rating: 2 W

Mounting Style: Adhesive Mount

Electrical Type: Dipole

Number of Bands: 1 Band

Mechanical Style: PCB Trace

Maximum Frequency: 2.5 GHz

Minimum Frequency: 2.4 GHz

Termination Style: Connector

Antenna Connector Type: MMCX Plug

Protocol - WiFi - 802.11: WiFi

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
