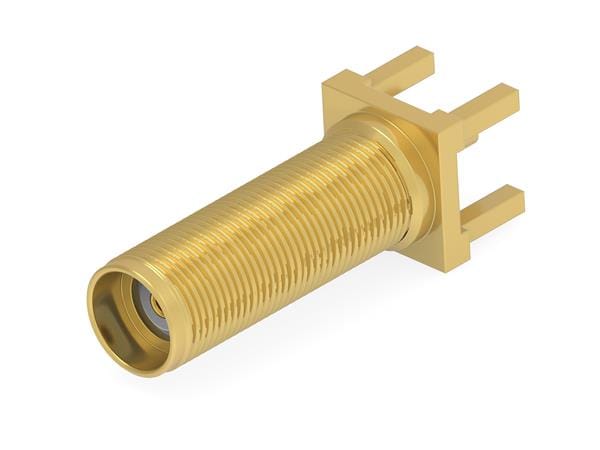

Linx Technologies - TE Connectivity 2484639-1 Coaxial Connectors SMA Jack Str PCB Thru Hole BHD 18 GHz
Gender: Jack (Socket)
Polarity: Standard
Frequency: DC to 18 GHz
Impedance: 50 Ohms
Isolation: Non-Isolated
RF Series: SMA
Body Style: Straight
Body Finish: Gold
Orientation: Right Angle
Body Material: Brass
Mating Cycles: 500 Cycles
Mounting Type: Board Mount
Mounting Style: Through Hole
Voltage Rating: 335 V
Contact Plating: Gold
Contact Material: Beryllium Copper
Maximum Frequency: 18 GHz
Minimum Frequency: DC
Termination Style: Solder
Coupling Mechanism: Threaded
Insulation Resistance: 5 kOhms
Maximum Operating Temperature: + 165 C
Minimum Operating Temperature: - 65 C
