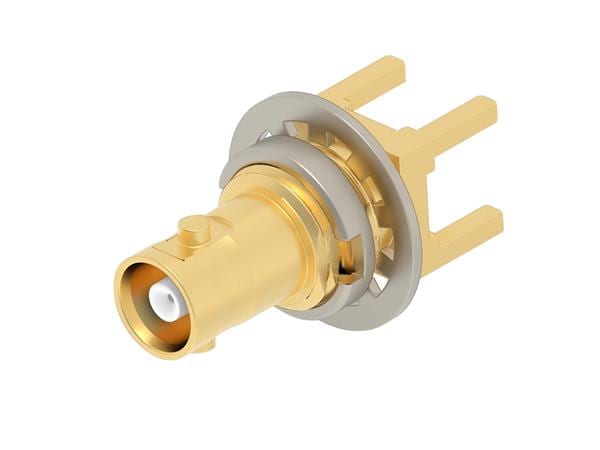

Linx Technologies - TE Connectivity 2446153-1 RF Connectors High Density BNC Str PCB Jack, Bulkhead, Thru Hole, 75 Ohm
Model2446153-1
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Gender: Jack (Socket)
Frequency: DC to 12 GHz
Impedance: 75 Ohms
RF Series: HD-BNC
Orientation: Straight
REACH - SVHC: Details
Body Material: Brass
Mating Cycles: 500 Cycle
Mounting Type: Bulkhead - Rear Mount
Mounting Style: PCB Mount
Voltage Rating: 335 V
Contact Plating: Gold
Contact Material: Beryllium Copper
Maximum Frequency: 12 GHz
Minimum Frequency: DC
Termination Style: Solder
Contact Termination: Solder
Insulation Resistance: 1 GOhms
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 55 C
