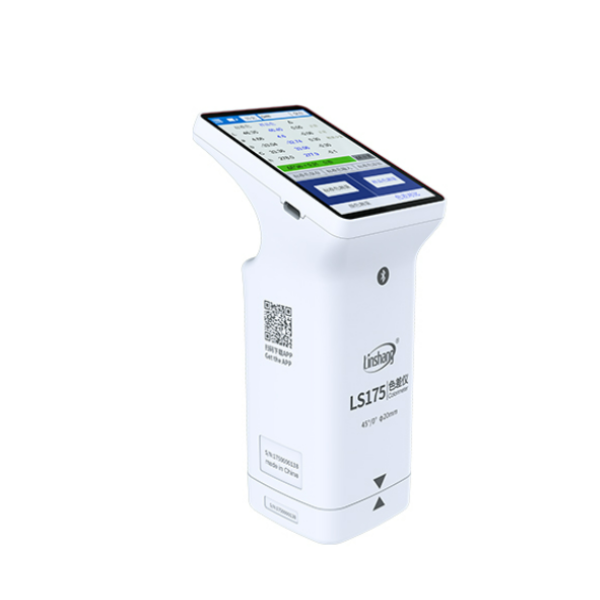

Linshang LS175 Colorimeter

Illumination geometry: 45/0 (45° annular illumination, 0° viewing angle)

Illumination light source: Full spectrum LED light source

Spectral Range: 400-700nm

Spectral Interval: 10nm

Measuring aperture: 20mm

Measurement conditions: Light source D65, field of view 10°

Measuring time: About 1s

Color space: CIE Lab, Luv, LCh, Yxy, CMYK, RGB, Hex

Color difference formula: ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00

Dimension: 86mm×62.5mm×158mm

Weight: About 225g

Power supply: Rechargeable lithium battery 3.7V@4000mAh, can measure 10,000 times continuously under full charge

Display: 480×320 dot matrix IPS color screen

Language: Simplified Chinese, English

Charging: port USB (Type-C)

Data transmission: USB, Bluetooth

Operating temperature range: 0~45℃, 0~85%RH (no condensation)

Storage temperature range: -25~55℃, 0~85%RH (no condensation)
