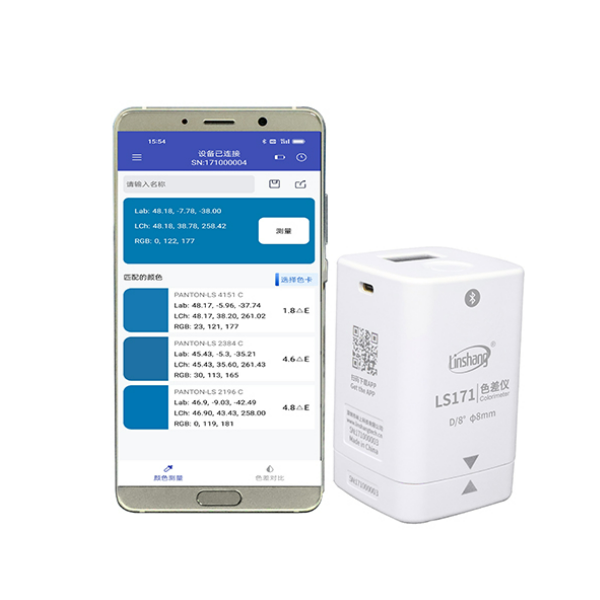

Linshang LS171 Colorimeter

Illumination geometry: D/8, Specular Component Include (SCI)

Illumination light source: Full spectrum LED light source

Measuring aperture: 8mm

Measurement conditions: Light source D65, field of view 10°

Measuring time: About 1s

Color space: CIE Lab, Luv, LCh, Yxy, CMYK, RGB, Hex

Color difference formula: ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00

Dimension: 57×57×89.4mm (L*W*H)

Weight: About 126g

Power supply: Rechargeable lithium battery 3.7V@700mAh, can measure 10,000 times continuously under full charge

Display: 0.96 inch OLED

Charging: port USB (Type-C)

Data transmission: Bluetooth

Operating temperature range: 0~45℃, 0~85%RH (no condensation)

Storage temperature range: -25~55℃, 0~85%RH (no condensation)
