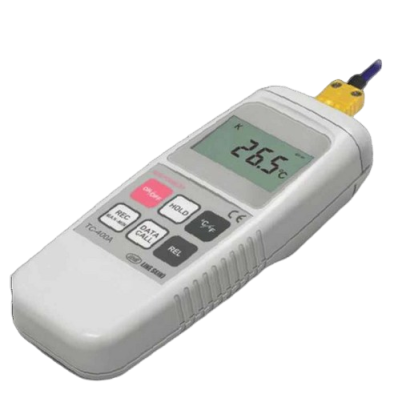

LINE SEIKI TC-400A Digital Thermometer type K (-160°C (-256°F) ~ +1372°C (+2502°F))

Sensor Type: Type K

Measuring Range: -160°C (-256°F) to +1,372°C (+2,502°F)

Resolution:

199.9°C (391.8°F) and below: 0.1°C (0.2°F)

200°C (392°F) and above: 1°C (2°F)

Accuracy (at 25°C (77°F) ±5°C (9°F)):

0~199.9°C (32°F~391.8°F): ±0.1% of reading + 0.7°C (1.3°F)

-0.1°C (31.8°F) or less: ±0.2% of reading + 1°C (1.8°F)

200°C (392°F) and above: ±0.2% of reading + 1°C (1.8°F)

Temperature Coefficient:

±0.015% of reading + 0.06°C / °C

±0.015% of reading + 0.108°F / °F

Sampling Time: Approx. 0.5 sec.

Linearize Method: Digital Linearize

Operation Function:

°C / °F (Selectable: TC-400A Only), Auto Power-Off, Data Hold, Data Record (MAX / MIN / Memory), Relative Measurement

Operating Temp./ Humidity:

0 - 50°C (32 - 122°F)

0 - 90 % RH at 0 - 35°C (Non-condensing)

Power Supply: Battery 006P (9V)

Battery Life: Approx. 500 Hours

Size: 166(H) x 68(W) x 35(D) mm

Weight: 200g

Sensor Connector: Thermocouple Connector

Accessories: One Battery 006P, Instruction Manual

IP Protection: None

Compliance: CE and RoHS
