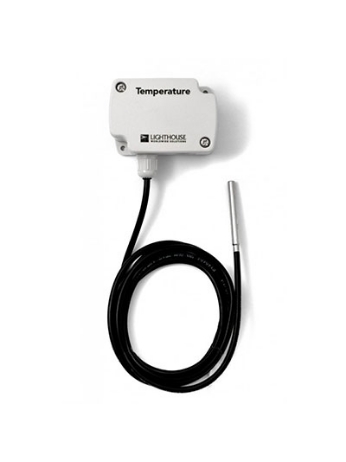

Lighthouse Remote RTD Temperature Sensor (-30 °C... +105 °C)

Suited for cleanroom applications and for monitoring laboratory equipment

Ideal for incubator, oven, fridge, and freezer applications in your facility or basic room monitoring

Active Output

Working Range: Remote probe: -30 °C... +105 °C (-22 °F...+221 °F)

Output: 4 - 20 mA

Sensing Element: Pt1000 (class A, DIN EN60751)

Accuracy: ±0.3 °C (±0.54 °F) at 20 °C (68 °F)

Power Supply: 10 V DC + RL x 20 mA < V+ < 35 V DC

Electromagnetic Compatibility: EN61326-1, EN61326-2-3 - Industrial Environment

Passive Output

Working Range: -30 °C...+105 °C (-22 °F...+221 °F)

T-sensor Connection: Two-wire

Electrical Connection: screw terminal, 2x max. 2.5 mm 2 (0.004 in 2 )

General

Housing Material: Polycarbonate, UL94V-0 (with Display UL94HB) approved

Protection Class: Enclosure IP65 / NEMA4, remote probe IP20

Cable Gland: M16x1.5, UL94-V2

Hose Clamp Material: stainless steel (corr. 1.4301 / 304)

Storage Temperature: -30 °C...+70 °C (-22 °F...+158 °F)

Storage And Working Humidity: 5 % rh...95 % rh, no condensation
