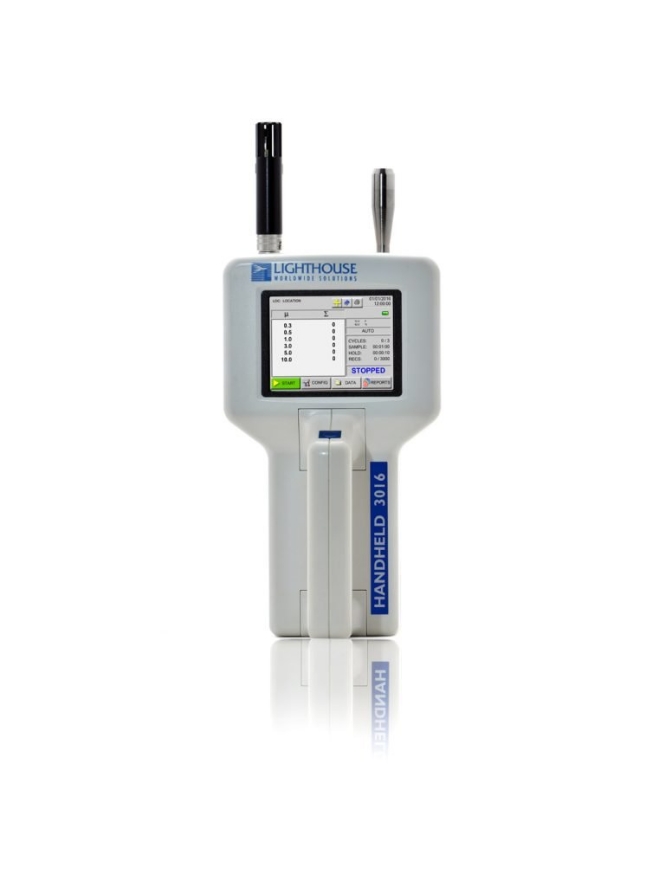

Lighthouse Handheld Airbone Particle Counter (0.3 – 25 μm)

Minimum Size Detection: 0.3 μm

Standard 6 Channel sizes: 0.3, 0.5, 1.0, 3.0, 5.0, 10.0 μm

Additional Available sizes: 0.7, 2.0, 2.5, 7.0, 25.0 μm

Flow Rate: 0.1 CFM (2.83 LPM)

Weight: 2.2 lbs (1 kg)

Concentration Limits: 8,000,000 Particles/ft3@10% Coincidence loss

Communication: RS-232 via RJ-45 to PC or optional printer

Count Modes: Automatic, manual, beep, concentration, cumulative/differential

Data Storage Records: 3,000 sample records, rotating buffer, includes particle and environmental data, location, and time

Alarms: Internal, adjustable alarm on counts, low battery, sensor failure

Sample Inlet: Isokinetic sampling probe

Sample Outlet: Internally filtered to HEPA standards (>99.97% @ 0.3 μm)

Vacuum Source: Internal pump, automatic flow control

Environmental Sensors: Direct Mount Temperature/Relative Humidity probe: 0-150°F (-17.8 to 65.6°C)±1.8°F@77°F, 0-100% ± 5%@33%

Enclosure: High impact injection molded plastic

Power: External power supply: 12 VDC, 1.25 A

Battery: Li-Ion, removable and rechargeable

Light Source: Extreme Life Laser Diode

Calibration: ISO 21501-4 Compliant and Accredited ISO 17025

Zero Count Level: < 1 Count / 5 minutes (meets specifications of JIS B 9921 and reporting requirements of ISO 21501-4 Annex C)

Dimensions: 8.75“ (l) x 5.0” (w) x 2.5” (h), (22.23 x 12.70 x 6.35 cm)

Software: LMS Express, LMS Express RT, LMS Pharma, LMS Pro, LMS Xchange

Languages: English (U.S.), Deutsch, Espanol, Italiano, Français, Russian, Japanese, Korean and Chinese

Includes: Removable battery, direct mount insokinetic sample probe; purge filter; temperature/relative humidity probe; power supply; power cord

Optional: Carry Case, Isokinetic sample probe with 6ft tubing, additional Li-Ion batteries, external battery charger w/AC & car adapter, thermal printer

and printer cable, printed operating manual
