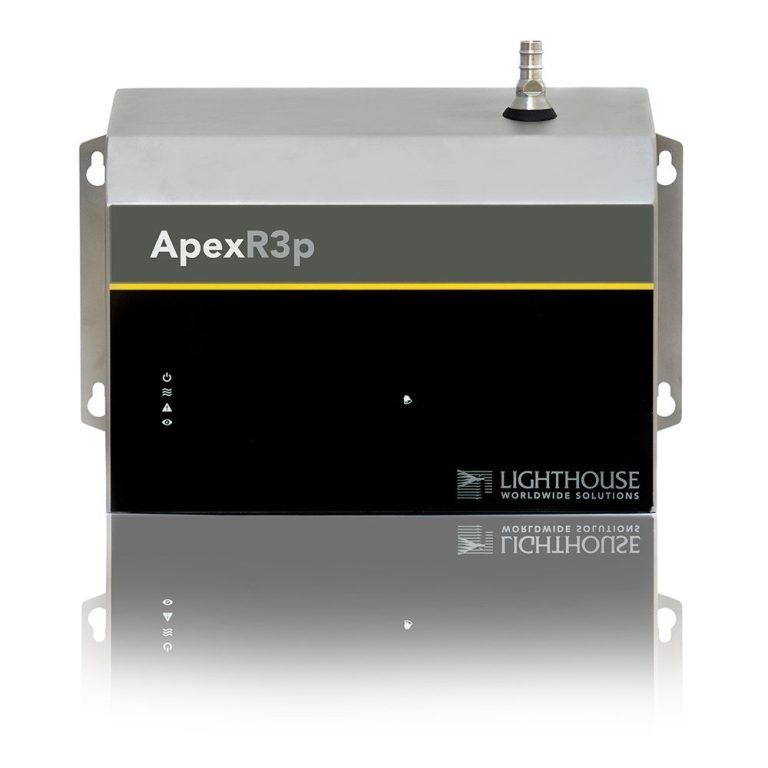

Lighthouse ApexRXp Airbone Particle Counter (0.3 μm - 5.0 μm, 1 CFM)

Minimum Size Detection: 0.3 μm

Standard 2 channel sizes: 0.3, 0.5 μm

Optional 4 channel sizes: 0.3, 0.5, 1.0, 5.0 μm

Additional Available sizes: 0.7, 3.0 μm

Flow Rate / Nozzle Size: 1 CFM (28.3 LPM), 3/8” inlet

Concentration Limits: 1,000,000 Particles/ft3@10% coincidence loss

Communication: Ethernet or Serial.

Modbus Protocols: TCP or RTU or ASCII

Data Storage Records: 3,000

Self Diagnostics: Laser power supply, laser current, laser power, photo detector power supply, background voltage, photo detector health.

Enclosure: 316L Stainless Steel

Power: 24 VDC 120W

Internal Vacuum Pump: 1.0 CFM with HEPA Filtered Exhaust

Calibration: ISO 21501-4 Compliant and Accredited ISO 17025

Zero Count Level: < 1 Count / 5 minutes (meets specifications of JIS B 9921 and reporting requirements of ISO 21501-4 Annex C)

Software: LMS Pro or LMS Xchange

Weight: 6.3 lbs (2.9 kg)

Dimensions: 6.65”(h) x 9.13”(w) x 4.75”(d) [16.89 x 23.19 x 12.06 cm]

Includes: Power adapter and power cord, Operators Manual on USB flash drive, Calibration Certificate

Optional: Temperature & humidity probe, Wall Bracket, Smart Bracket, Isokinetic sample probe, Printed operators manual
