Temperature Range: -50℃ ～ +150 ℃
Temperature Fluctuation: ± 0.5 ℃
Temperature Deviation: ± 2.0 ℃
Humidity Range: 30% ~ 98% RH
Humidity Deviation: ± 2.5% RH
Cooling Rate: 5 ℃ / min
Heating Rate: 5 ℃ / min
Rated Force of Vibration: 1000kgf
Frequency Range of Vibration: 2 to 4000 Hz
Armature Diameter of shaker: φ240mm
horizontal sliding table: 600*600 mm
Power Amplifier: Digital power amplifier
Head Expander: 600*600 mm
Blower: 4Kw blower, including muffler.
Cooling system: Mechanical compression refrigeration system
Safety Protection: Humidifier dry-combustion protection; over-temperature protection; over-current protection; Refrigerant high-pressure protection; Water shortage protection; Earth leakage protection
Exterior Material: Steel Plate with protective coating
Interior Material: SUS304 stainless steel
Description

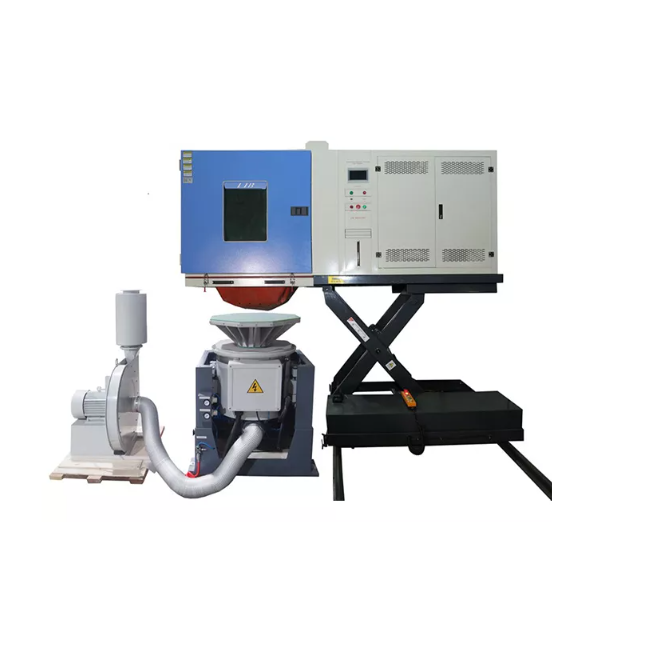

1. Comprehensive Multi-Environment Simulation: The combined climate and vibration chamber integrates temperature, humidity, and vibration testing into one system, supporting a temperature range of −50 °C to +150 °C and humidity from 30% to 98% RH. Both vertical and horizontal vibration modes are supported, accommodating loads up to 500 kg. This allows manufacturers to replicate real-world conditions, conduct combined stress screening, and assess product reliability across multiple industries, including aerospace, automotive, and electronics.
2. Precision Control and Repeatability: Equipped with a high-precision PID touchscreen controller, the chamber enables programmable multi-stage test profiles with real-time monitoring. Temperature stability is maintained within ±0.5 °C, and humidity within ±2.5 % RH. Fast heating and cooling rates (up to 5 °C/min) combined with closed-loop accelerometer feedback for vibration ensure accurate, repeatable results. This guarantees reliable evaluation of product performance and durability under complex environmental stresses.
3.Robust Construction and Safety: The interior of vibration chamber is made of SUS304 stainless steel, providing corrosion resistance and structural stability under high humidity, while the exterior uses coated A3 steel for industrial durability. Integrated safety features—including over-temperature protection, humidity system dry-combustion protection, water shortage alarms, and leakage current safeguards—ensure operator and equipment safety, supporting long-term reliable operation in demanding test environments.
4.Flexible and User-Friendly Design: Quick-change vertical/horizontal vibration tables and adjustable sample fixtures allow easy setup and rapid switching between test configurations. Large observation windows and internal lighting enable real-time monitoring of samples. USB and Ethernet connectivity supports data logging, remote monitoring, and integration with external systems, streamlining operations and improving overall testing efficiency.
5. Standards Compliance and Industry Versatility: The climate and vibration chamber meets key standards including IEC 60068, MIL-STD 781/883, DO-160, ISO 16750-3, and ISO 26262. It is suitable for testing electronic components, automotive parts, aerospace materials, and other critical products. Compliance with international standards ensures that testing results are credible, reproducible, and widely accepted for regulatory and certification purposes.
