Workroom dimension (mm): 800*800*800
External dimension (mm): 950*3150*1800
Interior Volume (L): 510
Diameter of Turntable (mm): 600
Turntable Rotation Speed: 0~7r/min (Adjustable)
Internal Diameter of IPX5 Nozzle: 6.3mm
Internal Diameter of IPX6 Nozzle: 12.5mm
Water Flow Rate IPX5/ IPX6: 12.5L/min ±5% / 100L/min ±5%
Controller: Programmable color LCD touch screen controller, Ethernet connection
Water Supply System: Water tank, booster pump, Automatic water supply, Water purification system
Safety Device: Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection; Phase Sequence Protection
Exterior Material: Steel Plate with protective coating
Interior Material: SUS304 stainless steel
Observation Window: Double layer insulating glass with wiper
Advantages

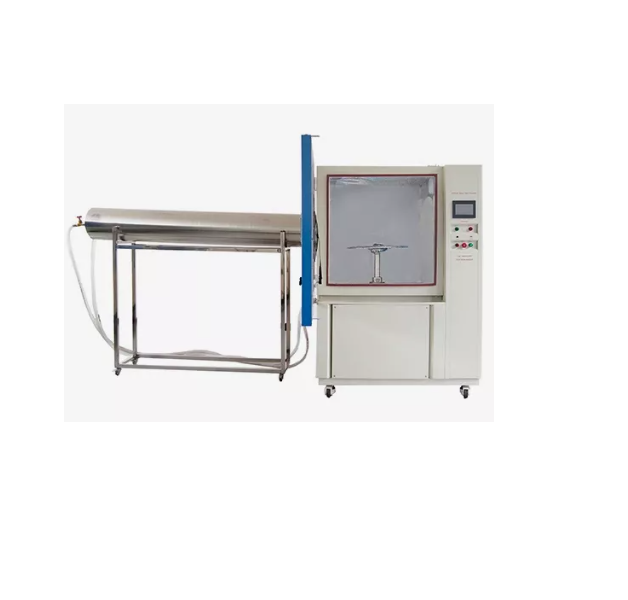

1. Precision Water-Jet Nozzle Assembly: LIB's IPX5 IPX6 Water Jetting Test Chamber integrates a dual-nozzle spray system manufactured from high-grade stainless steel. The system includes a 6.3 mm nozzle for IPX5 testing and a 12.5 mm nozzle for IPX6 applications, both engineered with strict dimensional accuracy. At a spray distance of 2.5 m, each nozzle delivers a stable, well-defined 40 mm water-jet core, ensuring repeatable and reliable test conditions across multiple cycles.
2. Closed-Loop Flow Regulation with Continuous Monitoring: A built-in electromagnetic flow sensor tracks real-time water output and transmits feedback to the PID control unit. The controller automatically modulates pump
performance to maintain precise flow rates of 12.5 L/min for IPX5 and 100 L/min for IPX6 testing. This intelligent regulation system eliminates manual calibration, enhances operational safety, and ensures full conformity with IEC60529 requirements.
3. Corrosion-Resistant Chamber & Adaptive Test Fixtures: The test chamber interior is fabricated from 304 stainless steel, offering excellent resistance to corrosion under prolonged water-jet exposure. High-intensity LED illumination provides unobstructed visual inspection of the test sample during operation. The height-adjustable rotating platform (350–500 mm) with a constant 1 r/min rotation speed ensures uniform water impact from all directions.
4. Automated Water Filtration and Recycling System: The chamber features an integrated water circulation system with automatic filtration and refill functions. This closed-loop design significantly reduces water consumption while supporting long-duration and unattended testing, improving overall efficiency and sustainability.
5. Integrated Power Supply for Live Waterproof Testing: An internal power interface is incorporated into the adjustable turntable, allowing test specimens to remain energized during water-jet exposure. Combined with tilt-angle support, this configuration enables functional testing under realistic operating conditions, making it ideal for evaluating electronic enclosures and assemblies in real-world waterproof scenarios.
