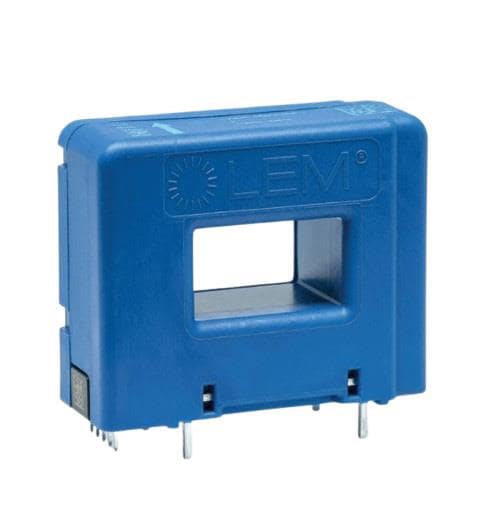

LEM LZSR 200-P/SP1 Current Transducer Current Transducer LZSR 200-P/SP1. For the electronic measurement of current: DC, AC, pulsed, with galvanic separation between the prmary and the secondary circuit.

Width: 19.4 mm

Height: 37.75 mm

Length: 48.4 mm

Accuracy: 1.4 %

Output Type: Digital, Analog

Sensor Type: Closed Loop

Unit Weight: 46 g

Response Time: 3 us

Current Rating: 200 A

Output Voltage: 250 mV to 4.75 V

Frequency Range: 200 kHz

Supply Voltage - Max: 5.25 V

Supply Voltage - Min: 4.75 V

Operating Supply Voltage: 5 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
