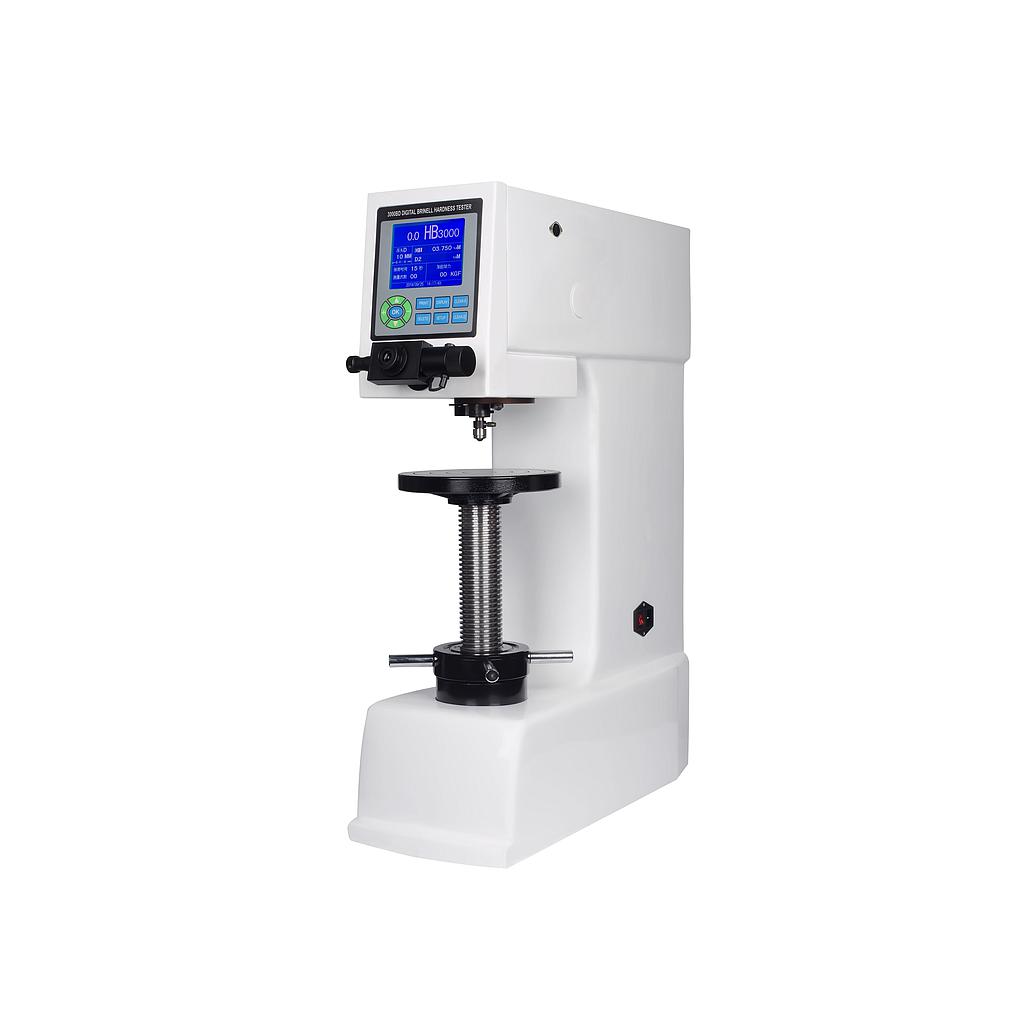

Leeb LHB-3000D Digital Brinell hardness tester (8~650HBW)

Testing Force

62.5kgf(612.9N); 100kgf(980.7N); 125kgf(1226N); 187.5kgf(1839N); 250kgf(2452N); 500kgf(4903N); 750kgf(7355N); 1000kgf(8907N); 1500kgf(14710N); 3000kgf(29420N)

Max Height of Specimen: 200mm

Main Measuring unit: 0.625µm

Net Weight: About 90kg

Power supply: AC220+5%,50~60Hz

Overall Dimension (mm): 550*210*750mm

Duration time:5~60s

Hardness testing Range: 8~650HBW

Magnification of Microscope: 20X

Carried Standard: GB/T231.2 Chinese Standard, JJG150 Inspection Rule

Distance of Indenter to outer wall: 135mm

Indication of Hardness Value: LCD display, Printer Output, Inside Printer

Accessories:

Objectives 20x

Standard blocks X 3

Power cable X 1

Diameter 2.5、5、10mm Hard Alloy Steel Ball Indenter

Manual X 1

Large, Medium 'V" shaped testing cable

Product certificate, printer manual
