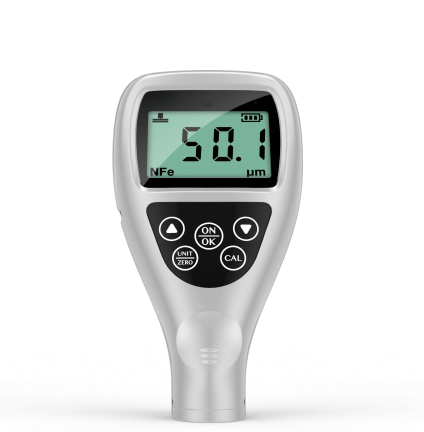

Leeb 252 Coating thickness gauge (0~1250μm; 1μm)

Operating principle: Magnetic induction or Eddy current

Measuring range (µm): 0~1250μm

Accuracy: ±[（1~3%)H+1]

Low range resolution (µm): 1μm

Min curvature of the min area (mm): Convex1.5 Concave20

Diameter of the min area (mm): Φ10

Critical thickness of substrate (mm): 0.5

Operating temperature: 0℃~40℃

Dampness: 20%~90%

Magnetic field: No strong magnetic field environment

Dimensions: 150×55.5×23mm

Power supply: AAA Alkaline battery

Weight: 120g

Standard configuration

Main unit, 5 specimens (50mm、100mm、200mm、500mm、1000mm)、4 AAA Batteries.
