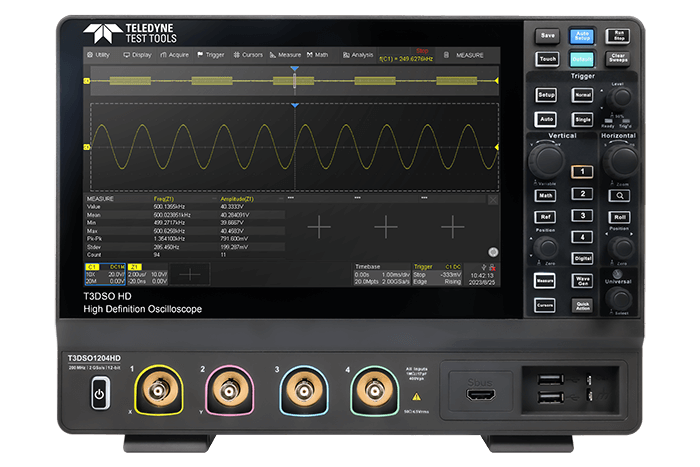

Analog channels: 4 + EXT (4CH Series: T3DSOxxx4HD)
Bandwidth: 100 MHz
Vertical resolution: 12-bit
Sample rate (Max.):
One channel mode: 2 GS/s
Two channel mode: 1 GS/s
Four channel mode: 500 MS/s
Memory depth (Max.):
One channel mode: 100 Mpts/ch
Two channel mode: 50 Mpts/ch
Four channel mode: 25 Mpts/ch
Waveform capture rate (Max.):
Normal mode: 120,000 wfm/s
Sequence mode: 500,000 wfm/s
Trigger type: Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern, Video, Qualified, Nth edge, Delay, Setup/Hold time, Serial
Serial trigger and decode (Standard): I²C, SPI, UART, CAN, LIN, CAN FD (Decode Only), FlexRay (Decode Only)
Measurement: 50+ parameters, statistics, histogram, trend, and track supported
Math:
4 traces
2 Mpts FFT, +, −, ×, ÷, ∫dt, d/dt, √, Identity, Negation, Absolute, Sign, ex, 10x, ln, lg, Interpolation, MaxHold, MinHold, ERES, Average
Supports formula editor
Data analysis: Search, Navigate, History, Mask Test, Counter, Bode plot, and Power Analysis
Digital channel (optional): 16-channel; maximum sample rate up to 1 GS/s; record length up to 10 Mpts
USB AWG module (optional): One channel, 50 MHz, sample rate of 125 MHz, wavelength of 16 kpts, isolated output
I/O: USB 2.0 Host ×3, USB 2.0 Device, 10 M /100 M LAN, External trigger, Auxiliary output (TRIG OUT, PASS/FAIL), SBUS (Digital MSO)
Probe (Standard): Four 100 MHz passive probes
Display: 10.1 TFT-LCD with capacitive touch screen (1024×600)
