LEAPTRONIX SU-56A Universal & Gang Programmer

Supported Devices: EEPROM, SPINAND/NORFlash, ParalleNAND/NORFlash, eMMC/eMCP, MCU, PIC, CPLD, FPGA...

Supported Packages: SOP, SSOP, TSOP, TQFP, QFN, WSON, SNT, WLCSP, BGA...

Supported File Formats: INTEL HEX, MOTOROLA HEX, TEK HEX, ASCII HEX, BINARY..

Supported Adapters: 1~4

Programming Performance:

+ eMMC: 43Mbyte/sec

+ SPI: 1.5Mbyte/sec

+ NAND: 6.0Mbyte/sec

Pin Drivers: 56~240(Universal)

Logic Pin Driver:

+ Signal Level: 1.65~6.5V

+ Signal Frequency: 0~75MHz

PowerDriver:

+ VCC/VIO: 1.65~6.5V

+ ICC/IIO: 400mA

+ VPP(VHH): VPP/VHH:1.5V~15.5V

+ IPP(IHH): 150mA

eMMCI/O:

+ Pin Drivers: 88

+ Signal Frequency: 100~200MHz

eMMCPower:

+ VCC: (500mA/1.7~3.6V)x4

+ VCCQ: (500mA/1.7~3.6V)x4

Dimensions: 110x193x49mm

Weight: 1.5kg

Power Supply: DC 5V

Standard Accessories:

SU-562A Main unit x 1

USBCable x 1

Power Cord (InputAC110~240V,OutputDC5V/500mA) x 1

Option adapter

SU-56A-SFLASH-BGA24-4x6B-4S

SU-56A-SFLASH-SOP8-150-4E

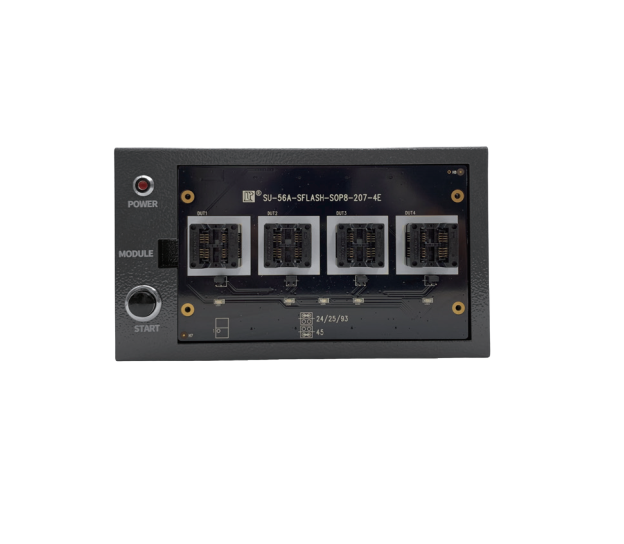

SU-56A-SFLASH-SOP8-207-4E

SU-56A-SFLASH-SOP16-300-4E

SU-56A-SFLASH-TSSOP8-4E 240

SU-56A-SFLASH-WSON8-2x3-4S

SU-56A-SFLASH-WSON8-5x6-4S

SU-56A-SFLASH-WSON8-6x8-4S

SU-56A-TO-AH-480 ADAPTER

SU-56A-TO-DIP48 ADAPTER
