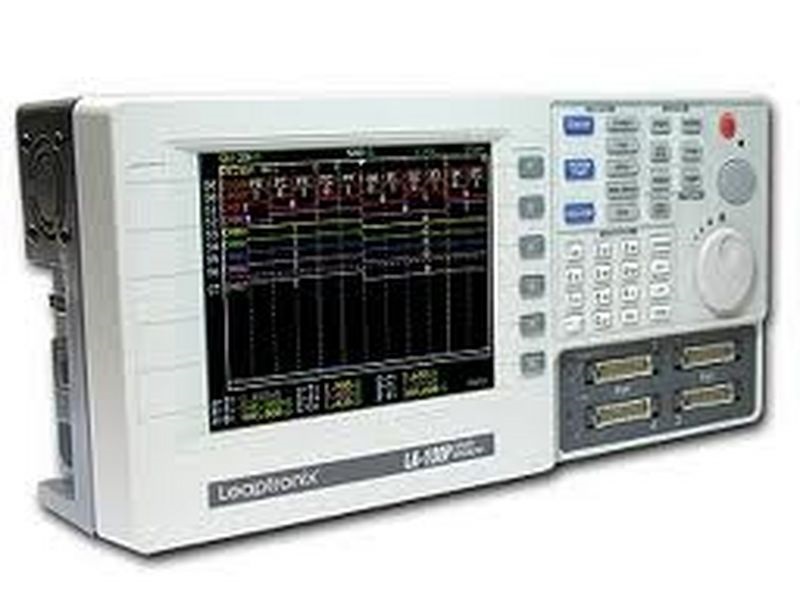

Leaptronix LA-2050 Logic Analyzer (32CH, 500Mhz)

Timing Analysis: 500MHz
State Analysis: 200MHz
Bandwidth: 200MHz
Channels: 32CH
RAM Size: 2M Bytes
Storage Depth per Channel: 1M bits x 32CH
Maximum Input Voltage: ±15V
Threshold Range:-4V～+4V
Trigger Condition:Pattern / Edge / AND / OR
Trigger Counter: 1~255 times
Pulse Width Trigger: YES
Glitch Capture: YES
Display Measure: 5.6 inch Colored LCD (320 x 234)
Communication: USB 2.0
Power Source: 110V AC～240V AC
Power Consumption: 18W (20W Max)
Dimension: 31cm x 15cm x 9cm
Weight 3.8Ｋg
Standard Accessories:
Main unit x1
Data pod x4
Lead set x4
Testing probe (testing hook) x36
AC power cord x1
CD x1 (Driver and user manual are included)
USB cable x1
