UPH: 1500 (No Programming Time )
* Handler system:
Placement repeatability: ±0.03mm
Max.Stroke: X Axis: 300mm, R Axis: 330°, Z0~Z2 Axis: 50mm, Y Axis: 550mm, TZ Axis: 65mm
Pick and place method: 4 Vacuum Nozzles
Dimension:
+ 1655mm(W)*1520mm(H)*1060mm(D) [Without tower light]
+ 1655mm(W)*2030mm(H)*1060mm(D) [With tower light]
Net Weight: 600kg
* Motion system:
X axis stroke: 1000mm
Y axis stroke: 410mm
Z axis stroke: 70mm
O axis stroke: 360°
* AOI System:
Fixed CCD:
+ Field of view: 25x20mm
+ Resolution: 0.02 mm
+ Repeatability: ±0.008 mm
Carried CCD:
+ Field of view: 35x25mm
+ Resolution: 0.045mm
+ Repeatability: ±0.03 mm
*Programmer:
Resident programmer: eMMC Gang Programmer
Programming Site: 1 to 8 site, 1 to 8 socket per site, up to 64 socket.
* Loader and unloader:
Tray input: Auto tray move in，stack up to 10 trays for JEDEC stander.
Tray output: Auto tray move out，stack up to 10 trays for JEDEC stander.
Tape input: Available for tape with 8mm, 12mm, 16mm, 24mm tape width.
Tape output: Press-sealing mode，Accept tape with 8mm to 32mm tape width.
Tube input: Support 150mil，207mil，300mil package.
* Control System:
OP: PC base control with Windows XP Embedded
Display: TFT LCD Monitor
Data entry: Keyboard and Mouse
* Power:
AC Input: AC 200V~245V, Single Phase 3-Cord
Freq.: 50/60Hz
Consumption: 600W
Air system:
Air Pressure: 0.6MPa (5.5~6.0kg/cm2)
Air Flow: 50L/Min.
*Standard Accessories:

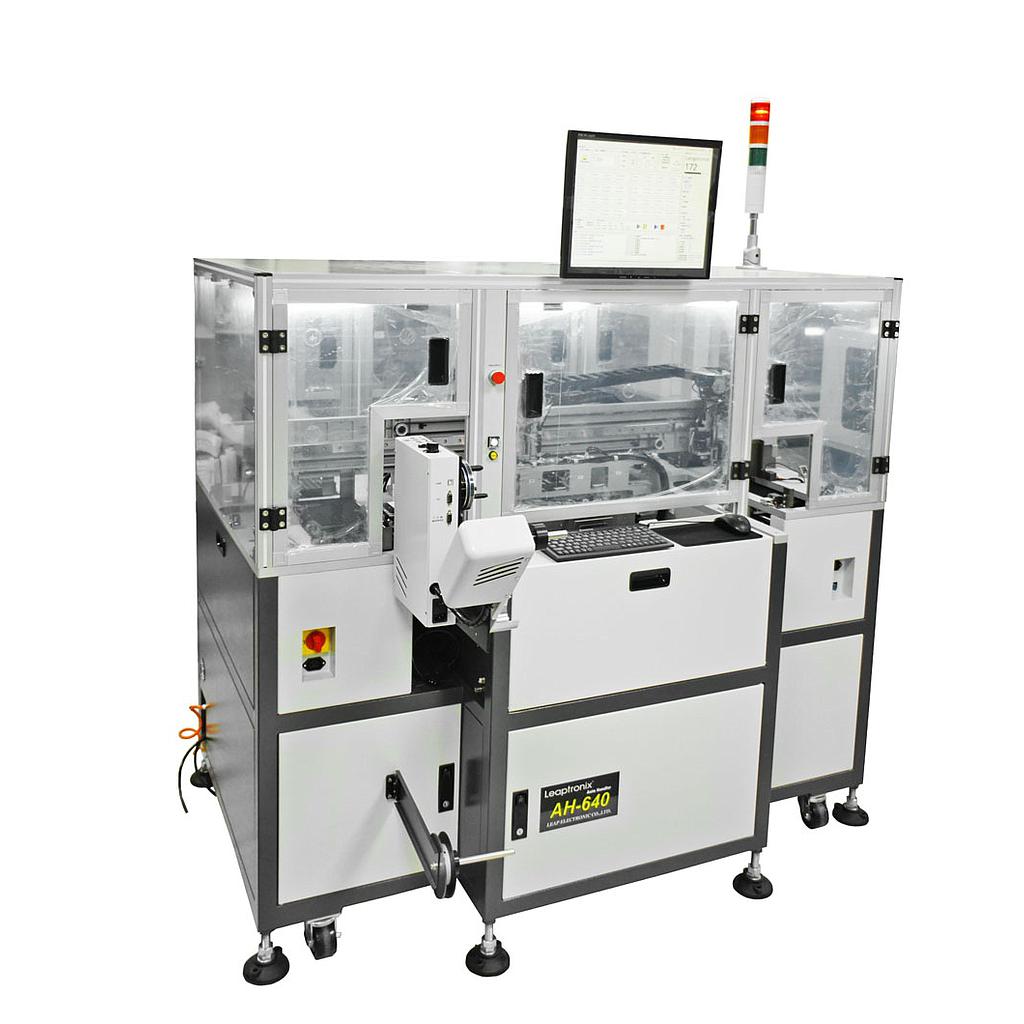

AH-640 Main unit x1
User manual x1
USB stick x1
*Options
• Auto Tray Transporter:
ATT-400, ≈ 30kg
• Tape Feeder:
ATF-1-XX (XX：tape width) pneumatic ≈ 2kg
ATF-2-XX (XX：tape width) electrical ≈ 2kg
• Taping Machine:
ATM-32A (8~32mm) Automated Packer ≈ about 5kg.
• Tube Feeder:
STI-3-XXX (XXX mil：IC Width)
Semi Automated Tube Feeder ≈about 3kg.
• Marker:
MK-2, for tape, ink type for dot, number and letter, ≈ 1kg.
MK-100, for tray, ink type for dot, number and letter, ≈ 1kg.
• IC Socket：
AH-160-XXXXX (XXXXX: IC package and Pin numbers) IC Socket.
• Press Bar：
AH-640-XXXXX-XX * XX (IC package, Pin numbers and dimension).
• Nozzle:
Large: Internal diameter 3* External diameter 8*L15.4/mm
Medium: Internal diameter 2.0* External diameter 3.3*L15.0/mm
Medium: Internal diameter 2.0* External diameter 3.3*L15.0/mm
