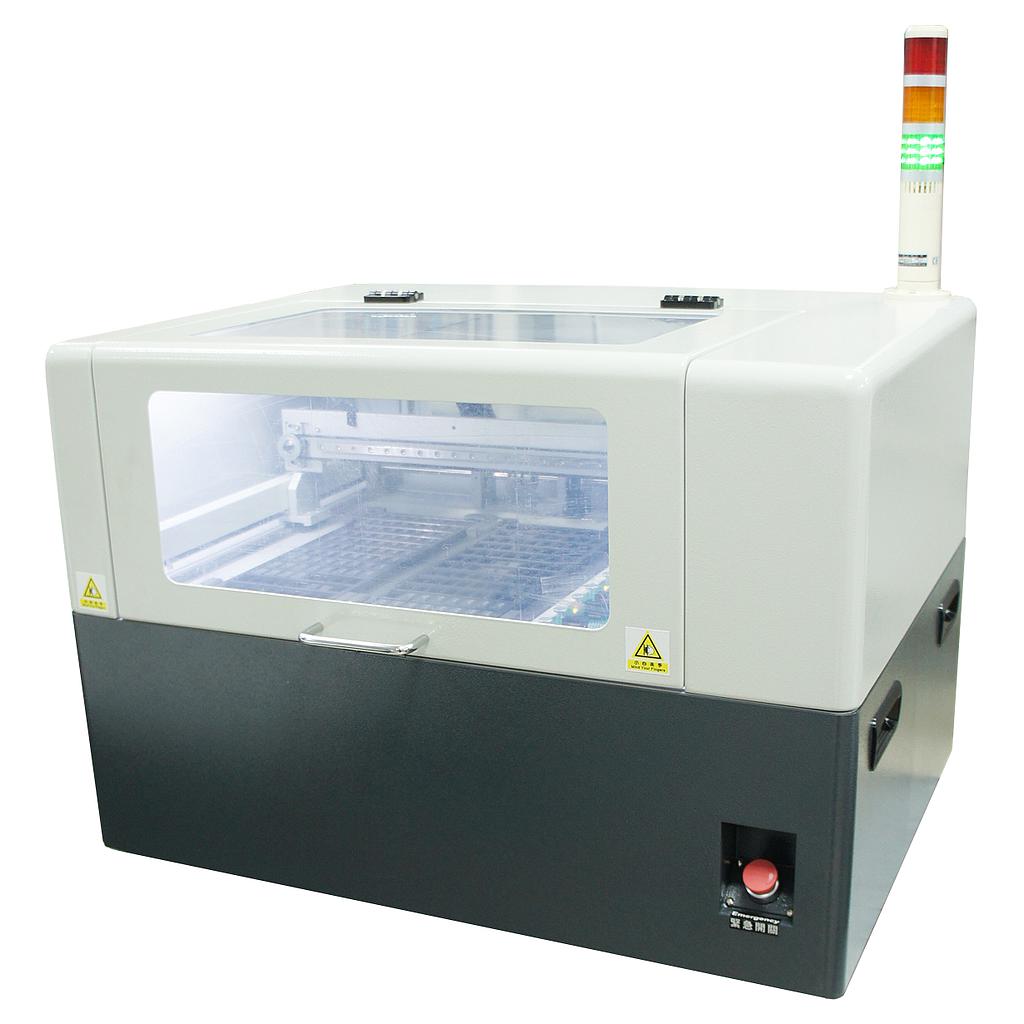

LEAPTRONIX AH-160B Customized Automated Programmer / Tester (550 U.P.H)

Throughput: 550 U.P.H

* Transmission System:

Repeatability: X axis ±0.03mm, Y axis ±0.03mm, Z axis ±0.2mm, Bar axis ±0.01mm

Max.Stroke:X axis 400mm, Y axis 310mm, Z axis 18mm, Bar axis 5mm

Pick and place method: Single Vacuum Nozzles

* Position System:

Positioning : Preprocessor

Preprocissor Device Dimensions: 30 x 30mm

* Programming System:

Resident Programmer: High Speed Gang Programmer

Socket Site: 4 sockets

Device supported: NOR Flash、NAND Flash、EEPROM .

File Formats Supported: Binary / Machine Code、Intel HEX、TEK HEX、Motorola HEX

* Feeding system:

Manural Tray-in / out: JEDEC stander

* Physical Specifications

Dimensions: 520(H) x 700(L) x 550(W)/mm

Net Weight: 70KG

* PC System Requirements:

Operating System: Windows7 / Vista / XP (32bit & 64bit)

CPU: Core 2 Duo above

Memory: 2GB RAM above

Hard Disk: 500 MB above, buffer 4GB above

Interface: USB 2.0 High Speed

* Operation Requirements:

Input Voltage: AC100V~240V, Single-phase, 3-wires

Input Frequency: 50 / 60Hz

Power Consumption: 200W(Max)

* Standard Accessories

AH-160B-I internal pneumatic or AH-160B-E external pneumatic x1

BeeHive204AP programmer x1

CD(included driver and manual) x 1

USB cable x 1

AC cable x 1

*Optional Module Adapter

TSOP, TSSOP, BGA, uBGA, VSOP, SOP, SSOP, PLCC, WSON, QFN
