Specifications
Flow range: 0.00011-720 mL/min
Speed range: 0.1-150 rpm
Speed resolution: 0.1-100 rpm, 0.1 rpm resolution; 100-150 rpm, 1 rpm resolution
Speed accuracy: 0.5%
Power supply: AC 220V ± 10% 50Hz/60Hz; AC 110V ± 10% 50Hz/60Hz
Power consumption: < 40W
External logic level control signal: 5V, 12V (standard), 24V (optional).
External analog control signal: 0-5V (standard); 0-10V, 4-20mA (optional)
Communication interface: RS485 MODBUS
Operating condition: Temperature 0~40°C; Relative humidity <80%
IP grade: IP31
Dimensions (L x W x H): 226 x 150 x 238 mm (8.90 x 5.91 x 9.37 inch)
Weight: 4.7 kg (10.4 lbs)
| Drive type | Pump head | Ch | Tubing size (mm) | Flow rate per channel (mL/min) |
|
BT102S | DG | 1.2 | Wall:0.8~1, ID:≤3.17 | 0.0001-49 |
| DT10-18 | 1 | 13# 14# , Wall:0.8~1, ID:≤3.17 | 0.0002-82 | |
| DT10-28 | 2 | 13# 14# , Wall:0.8~1, ID:≤3.17 | 0.0002-82 | |

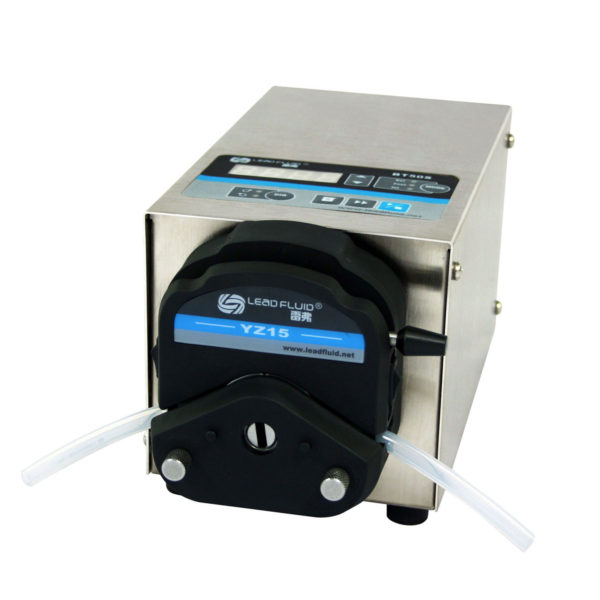

| YZ15 | 1 | 13# 14# 16# 19# 25# 17# | 0.006-280 | |
| YZ25 | 1 | 15# 24# | 0.16-280 | |
| YT15 | 1 | 13# 14# 16# 19# 25# 17# | 0.006-380 | |
| YT25 | 1 | 15# 24# 35# 36# | 0.16-480 |
