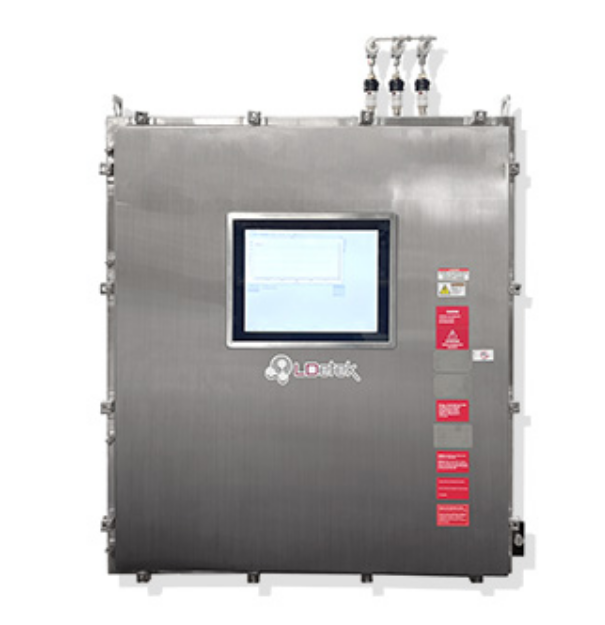

GENERAL DIMENSIONS: 38’’ W (965mm) X 30.37’’D (771mm) X 56.93’’ H (1116mm) (other sizes available on request)
MATERIAL: Stainless Steel
DOOR CLEARANCE: 37’’ (932 mm)
WEIGHT: 227 kg
STANDARD FEATURES
1 Tryclops X-Purge controller, XP version certified for Zone 1 and Zone 2 hazardous areas
1 air Exhaust
1 air purge gas inlet kit
1 8.4’’ panel PC per MultiDetek3 GC
1 Adjustable check valve on sample gas
1 Flashback arrestor on sample gas
1 pneumatic shut off valve on sample gas
OPTIONS
1 Vortex cabinet cooler with AC muffler
Additional instruments can be added
Up to three purged enclosures can be mounted in cascade using the same Tryclops
Floor mount rack
OPERATING ENVIRONMENT: Indoor and outdoor
CARRIER GAS PRESSURE: 100 PSI (6.9 bar)
SAMPLE GAS PRESSURE: 5-30 PSI (0.35-2 bar)
GAS CONNECTIONS: 1/8’’or 1/4’’ VCR or Compression type (Swagelok)
PURGE PROTECTIVE GAS SUPPLY QUALITY: Dry air grade : Water and oil-free, - 40° F (- 40° C) dew point, particles 5μ, ISA grade hydrocarbon-free
SUPPLY: 115 VAC, 50 – 60 Hz or 220 VAC, 50 – 60 Hz
POWER CONSUMPTION: Maximum 660 watts
APPLIED STANDARDS
EN60079-0
EN60079-2
EN60079-7
EN60079-11
EN60079-15
EN60079-18
CERTIFICATIONS
IECEx : Ex pxb IIB+H2 T4 Gb
ATEX : II 2 G Ex pxb IIB+H2 T4 Gb
CE (MultiDetek3)
OPERATING TEMPERATURE: -20 °C to 47 °C
T CLASSIFICATION: T4
IP: 66
ENCLOSURE VOLUME: 727.8 liters
MINIMUM PURGE FLOW: 120 L/min
MINIMUM PURGE TIME ON START-UP: 78 minutes
MAXIMUM OVERPRESSURE: 0.1 PSI (6.7 mBar)
MINIMUM OVERPRESSURE: 0.02 PSI (1.24 mBar)
MAXIMUM SUPPLY AIR PRESSURE: 100 PSI (6.9 bar)
MINIMUM SUPPLY AIR PRESSURE: 15 PSI (1.4 bar)
