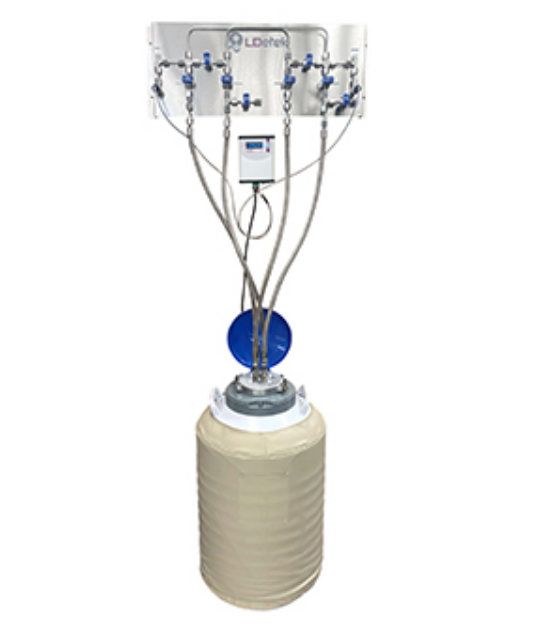

LDetek LDCRYO-S LDCryo Cryogenic Trap System (0-200psig (0-25bar))

Pressure Sensor Range: 0-200psig (0-25bar)

Pressure Sensor Material: Stainless Steel With Media-Isolated Metal Diaphragm

Pressure Sensor Gas Connection: 1/4 NPT

Purge/Isolation/Bypass Valves: 1/4’’ VCR (Model ¼ Turn Blue Handle)

Flexible Hoses: Stainless Steel

Mounting Plate: Stainless Steel

Gas Inlet Port: 1/4’’ VCR Male

Gas Outlet Port: 1/4’’ VCR Male

Pressure Sensor Rated: IP65

Dewar Size: 50 Liters

Max Flow Rate Capacity: 5LPM (Helium)

Liquid Nitrogen Refill Requirement: 4-8 Weeks (Application Dependent)

Trap Lifetime (Regeneration Interval): 3-6 Months (Application Dependent)

Recommended Operating Pressure: 100PSIG (6.89Bar)

Accuracy: +/-0.25% Full Scale

Operating Voltage: 85 ~ 264VAC

Operating Current: < 0.1A

Operating Frequency: 50-60Hz

Relay Outputs (4x): Dry Contact N.O & N.C

Relay 1: Status System Working

Relay 2: Gas Inlet Low Pressure Alarm

Relay 3: Gas Outlet Low Pressure Alarm

Relay 4: Inlet & Outlet Low Pressure Alarm With Buzzer

Communication: Serial Port RS232 With Modbus RTU (Male DB9 Connector)

Operating Temperature: -20°C To 70°C (-4°F To 158°F)

Operating Temperature For Pressure Sensors: -40°C To 125°C (-40°F To 257°F)
