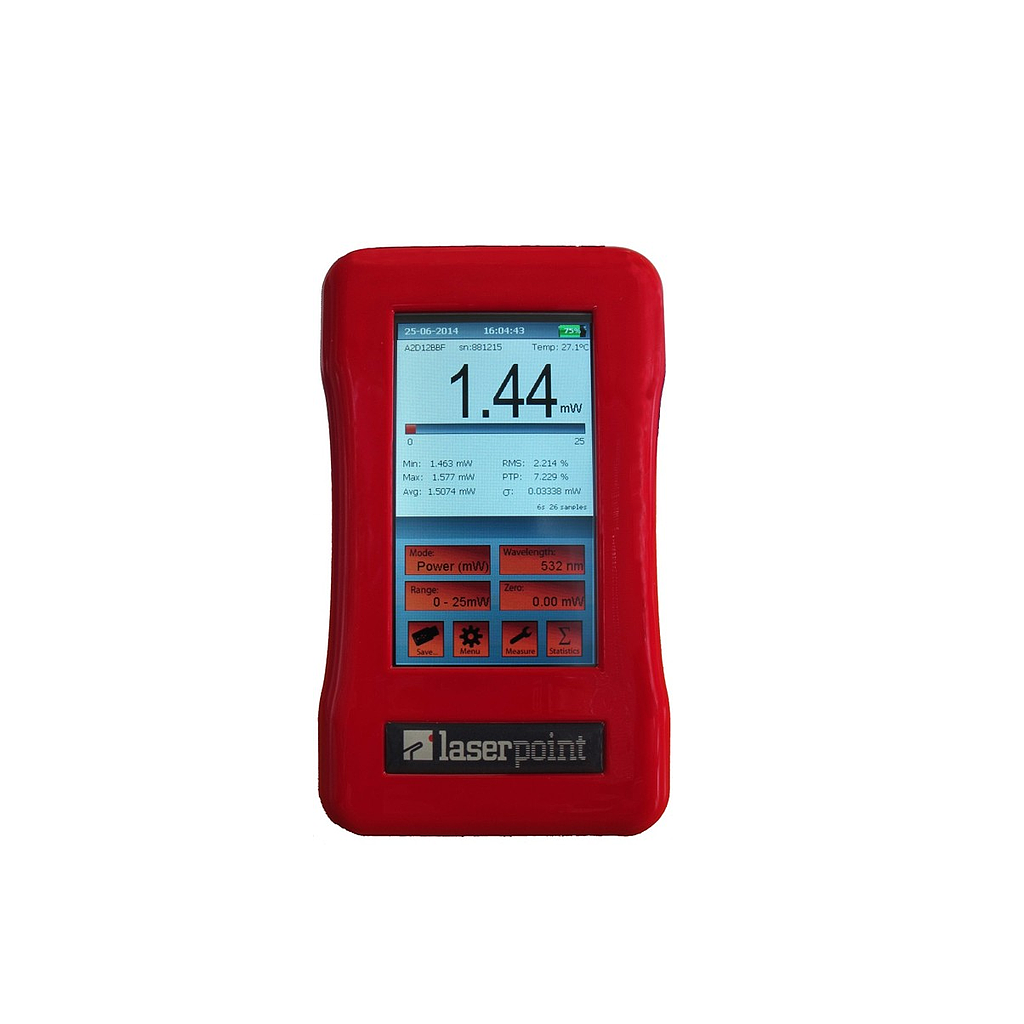

LaserPoint PLUS2 Laser Power Meter

Power Mode

Resolution: 0.01% - 0.1% of Full Scale

Energy Mode

Resolution: 0.01% - 0.1% of Full Scale

Pulse repetition rate Range: Single shot - 6 Hz (a)

Power Probe Mode (FIT-H)

Resolution: 0.5 ‰ (a)

General Operating Characteristics

Sensor Compatibility: Thermal sensors, OEM thermal sensors, FIT-H power probes, Photodiodes, Blink FR

Storage Temperature Range: -20 / +70 °C

Operating Temperature Range: +5 / +40 °C

Relative Humidity Range: 10 – 70 %

PC connectivity: USB

Sensor Head connectivity: DB15

Selectable Wavelengths: 1 nm resolution (b)

Dimensions: 170 H x 100 W x 36-50 D (mm)

Weight: 380 g

Display: 4.3” TFT LCD high brightness; 480 x 272 resolution; resistive touch screen; 96 H x 55 W mm

Battery: Built in rechargeable Li-Pol; 3.7 V, 3700 mAh

Battery charge time: 7-8 hours if not working; 15-20 hours if working

Battery run time: >9 hours in normal operations; >15 hours in stand-by display mode

Supplied battery charger: Input 100/240 Vac; 50/100 Hz; 5 Vdc; 1A; Charging current: 0.5 A;

(Plus2 may be charged through a PC USB port)

Electronics Characteristics

ADC sampling rate: 64 Hz – 192 Hz (c)

ADC resolution: 23 bit

Electrical accuracy: ± 0.5 %

Analog Output: 0.025 – 2 V (with 16 bit resolution; 0.0015% resolution)

Analog Output Accuracy: ± 0.1%; ± 2 mV relative to display
