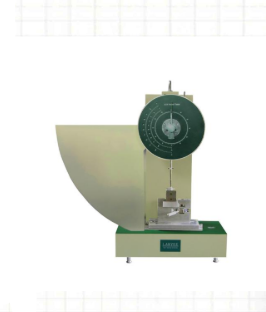

Laryee ZIT2105 Izod Impact Testing Machine (1J, 2.75J, 5.5J)

Impact energy: 1J, 2.75J, 5.5J

Energy Accuracy: 1%

Impact speed (m/S): 3.5

Pendulum moment:

Pd1 = 0.53590Nm/ Pd2.75 = 1.47372Nm

Pd5.5 = 2.94744Nm/ Pd11 = 5.8949Nm/ Pd22 = 11.7898Nm

Distance between striking edge to upper surface of clamps: 22mm

Raising angle: 150°

Round angle radius of striking edge: R=0.8mm

Sample span size(mm): 10, 12.7

Impact center distance (mm): 335

Scale Reading:

0-1J Min.scale:0.01J

0-2.75J Min.scale:0.025J

0-5.5J Min.scale:0.05J

Dimension: 550x350x900mm

Weight(Kg): 80kg
