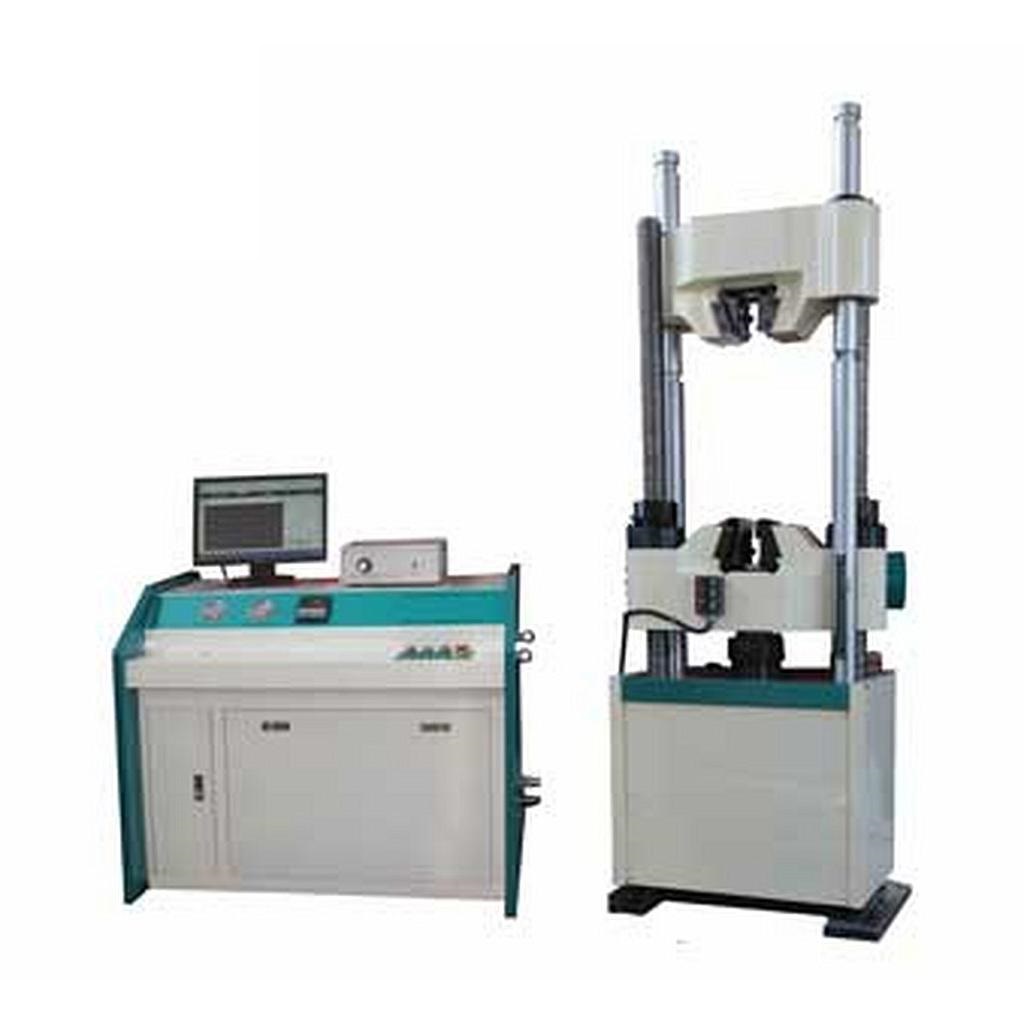

Laryee UH64100 Computer Control Servo Hydraulic Universal Testing Machine (1000KN)

- Maximum force(KN): 1000
- Measuring range of force (KN): 2%-100% of full load capacity
- Accuracy: ±1% of indicated value
- Resolution of displacement measure: 0.01mm
- Accuracy of deformation measure: ±0.5%F.S
- Control range of stress speed: 1-60MPa/S
- Control range of displacement speed: 0.5mm/min-50mm/min
- Clamping diameter for round specimen(mm): Ø14-60
- Clamping thickness of flat specimen (mm): 0-40
- Clamping width of flat specimen (mm): 120
- Testing space:
+ Tension: 750
+ Compression: 650
- Compression plate size: □210×210
- Distance of bending by pass roll(mm): 100～600 mm
- Maximum piston stroke(mm): 250
- Working environment: Room temperature 10℃～40℃, relative humidity≤90%
- Power supply: 3P~380/220v±10%, 50/60Hz
- Overall dimension (mm):
+ Host machine: 1070×850×2530
+ Control cabinet: 600×600×1165
- Weight(kg): 4100
- Standard accessories:
Tension, Compression, 3-Points Bending Test Accessories,
Hydraulic Pressure Sensor, Control Card, Servo Valve, Extension meter, Encoder
PC, Printer, Pipe, and install tools.
- Optional accessories:
Shearing Test Accessories, Rebar Tension grips，Bolt tension grip
Specified Extensometer
Extension meter calibrator
Load Calibrator
