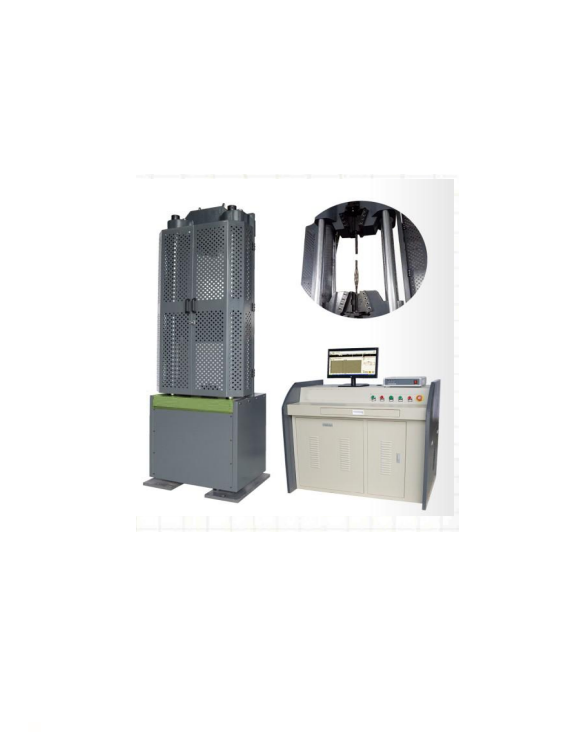

Laryee UH54200S Computer Control Servo Hydraulic Steel Strand Universal Testing Machine (2000kN)

Maximum force: 2000KN

Measuring range of force: 2%-100% of load capacity

Accuracy: ±1% of indicated value

Resolution of displacement measure: 0.01mm

Range of displacement speed: 0.5mm/min-50mm/min

Clamping diameter of specimen: Φ26,28,32,36,40,44,48mm

Length of clamping Jaws: 225mm

Valid tension space: 1000mm

Valid compression space: 900mm

Compression plate size: Φ300mm

Maximum piston stroke: 250mm

Power supply: 3P~220/380V,50/60Hz

Working condition: RT10℃~30℃, relative humidity≦80%

Host machine dimension: 1260×1150×3300mm

Net weight: 9000Kg
