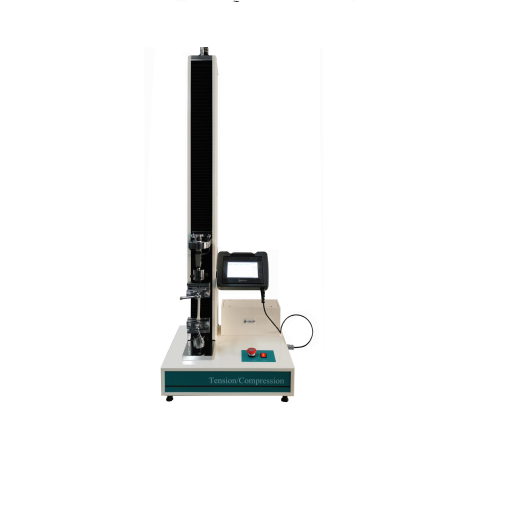

Laryee UE1502 Digital Electronic Universal Testing Machine (2kN)

Max testing force: 2KN

Crosshead move range: 0-1000mm

Measuring range of force: 2%~100%F.S

Accuracy: ±1%(±0.5% as special order)

Resolution of force: 1/300000 of maximum force

Resolution of displacement: 0.01mm, Accuracy: ≤±1 %

Speed range of crosshead: 0.01~500mm/min (Max 1000 mm/min ordered)

Valid tension space: 750mm

Valid compression space: 850mm

Flat sample thickness/width: 0-10mm/50mm

Power supply: 1P,220V±10%, 50/60Hz

Working condition: RT10℃~40℃, relative humidity≦ 90%

Dimension of host machine: 500×400×1500 mm

Net weight: 300Kg

Datasheet
