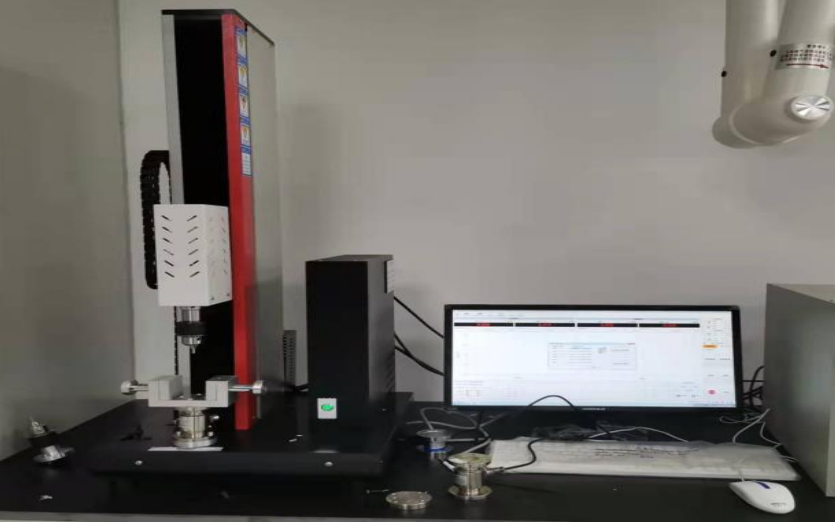

Laryee TL5005 Bone Screw Tester (0-5N.m; 1r / minute～ 30r / minute)

1. Unit: N•m

2. Resolution: 0.001N.m

3. Torque range: 0-5N.m

4. Torque sensor accuracy class: less than 0.5%F.S.

5. Speed accuracy: ±0.01mm/min

6. Axial force Sensor: 500N

7. Pressure sensor accuracy grade: less than 0.5%F.S.

8. Pressure sensor resolution: 0.001N

9. Linear displacement sensor: range over 50m

10. Displacement sensor accuracy class: less than 0.5%F.S.

11. Displacement sensor resolution: 0.01mm

12. Torsion angle sensor: 99999°

13. Torsion angle accuracy: ±0.2°

14. Torsion speed: Any choice within 1r/min～30r/min.

15. Effective stroke: 400±10mm (can be increased according to demand)

16. Torque resolution 1/±100000F.S

17. Relative error of torque indication ≤±0.2%;

18. Torsion angle resolution 0.001°

19. Torsion angular velocity Relative error within ±0.5% of the set value

20. Coaxiality of the two chucks≤￠0.2mm

21. Machine power≈0.4kW

22. Power supply voltage～220V±10% 50Hz (reliable grounding required)
