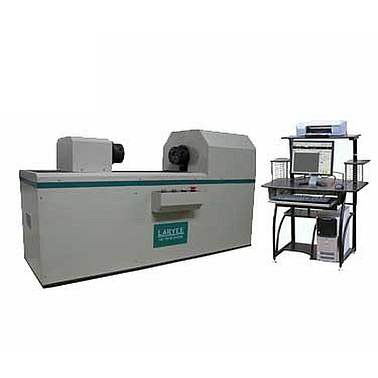

Laryee TE1420 Computer Control Torsion Testing Machine (Max.2000Nm)

- Maximum torque of test(Nm): 2000
- Relative erros of torque: ≤±1%
- Range of torsion angle measure: 0-9999.9°
- Relative erros of torsion angle: ≤±1%
- Display of torsion angle: Minimum resolution 0.1°
- Diameter of clamping sample(mm): Φ6-20mm
- Maximum distance between two collets(mm): ≥500
- Angle of twist in small-angle measurement: Minimum of resolution 0.0001°
- Range of reverse speed: 0-540°/min,Variable speed
- Precision of speed: ±1%
- Direction of test rotation: Bidirectional
- Power supply: 220v±10%,50/60Hz
- Standard Accessories:
PC, Printer, Torque Sensor, Encoder, Servo Motor, Specimen Grip Block,
Installation Tools,
- Optional Accessories: Torque Extensometer,Three jaw chuck for sample

Datasheet
