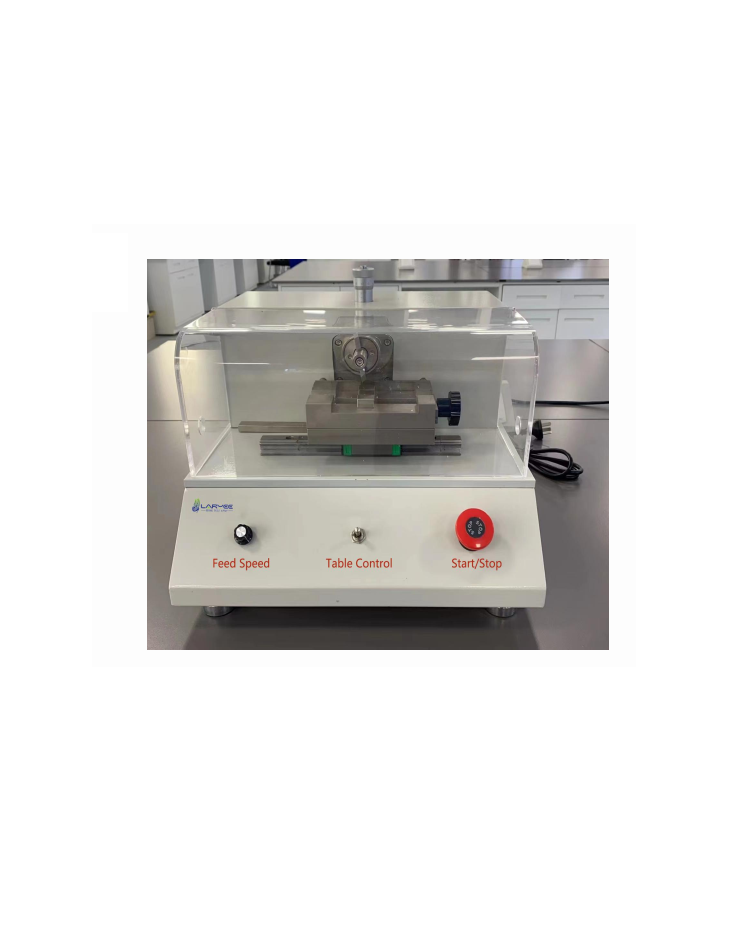

Laryee LYSN-45 Automatic Sample Notching Machine

Feeding Speed: 30mm/min

Table Stroke: ＞90mm

Sampling efficiency: more than 100 PCS /10min

Feed capacity: 0-2.5mm optional

Feed stroke:10mm

Dimensions: 450mm×390mm×360mm

Specimen Type: Customized according to cutter specifications

Power: 220V, single-phase three-wire system

Milling Cutter Parameters:

Type A: 45°±0.2° r=0.25±0.05 mm

Type B: 45°±0.2° r=1±0.05 mm

Optional Type C: 45°±0.2° r=0.1±0.02 mm

Configuration:

1. Main host 1 set

2. Sample alignment measuring block 1 pc

3. Type A and type B cutter Each 1 pc
