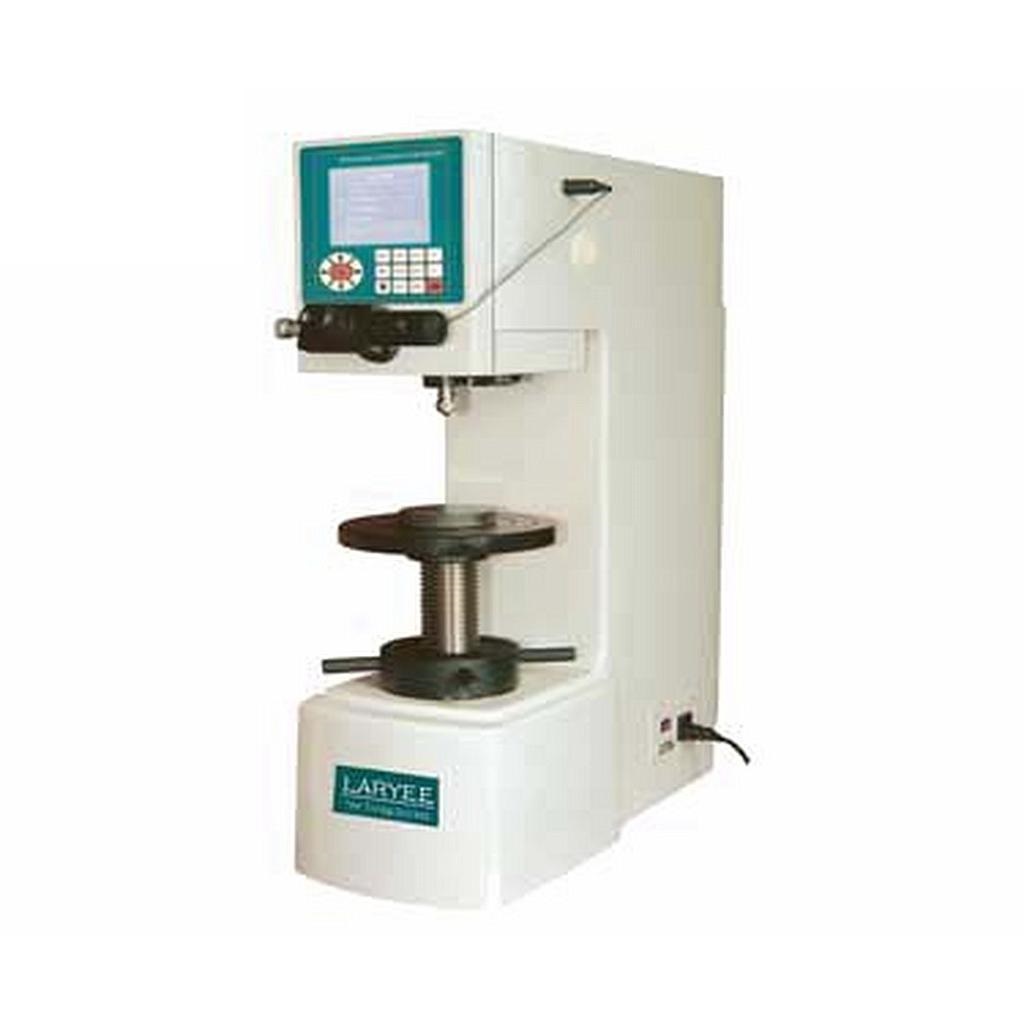

Laryee HBS-3000 LCD Brinell Hardness Tester

Test force: 612.9N(62.5kgf), 980N(100kgf), 1226N(125kgf), 1839N(187.5kgf), 2452N(250kgf), 4900N(500kgf), 7355N(750kgf), 9800N(1000kgf), 14700N(1500kgf), 29400N(3000kgf)
Hardness measuring range: 8-650 HBW (Hard metals steel ball)
Hardness value Max. tolerance:
±3%(HBW≤125)
±2.5%(125＜HBW≤225)
±2%(HBW＞225)
Magnification of microscope: 20X
Min.division of microscope’s drum wheel: 0.00125mm
Max. height of specimens: 220mm
Max. width of specimens: 135mm
Power supply: 1P~AC220V, 50/60Hz
Package Dimensions (D×W×H): 893×720×470mm
Gross weight: 160kg
Net weight: 130kg
Standard Accessories
Hard Alloyed Steel ball indenter:Ø2.5、Ø5、Ø10mm
Testing tables: big, small and "V"
Standard Hardness block: HBW 3000/10 150～250(1)
HBW 750/5,150~250(1)
Reading microscope:20X
