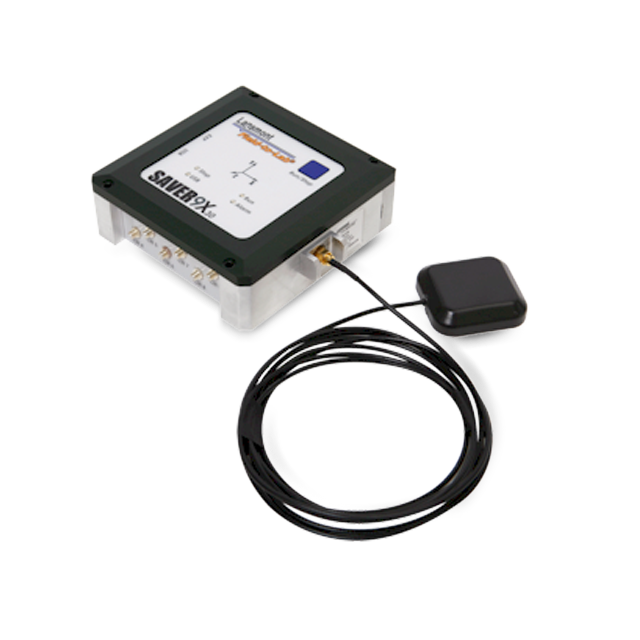

Lansmont SAVER 9XGPS Shock and vibration field data recorder

Envelope Size:  5.0 x 4.9 x 1.7 in. (127 x 124 x 43 mm)

Weight:  35 oz. (1 kg)

Acceleration Ranges:  5, 10, 20, 50, 100 and 200g (full scale)

Accelerometer Type:  Triaxial piezoelectric (internal), six external channels (optional)

Sampling Rates:  50, 100, 200, 250, 500, 1000, 2500, 5000, and 10,000 samples per second

A/D Conversion:  16-bit

Anti-Alias Filter:  4-pole, low-pass Butterworth filter, 10, 20, 25, 50, 100, 200, 250 and 500 Hz. (cut-off frequency)

3-dB Frequency Response:  0.4 Hz. to filter setting

GPS Run Time: 100 hours of vehicle movement (lithium batteries), 50 hours of vehicle movement (alkaline batteries), GPS turns off when instrument is not moving

Temperature Measurement Range:  -40° to 60°C (-40° to 140°F)

Humidity Measurement Range:  5% to 95% RH, non-condensing

Atmospheric Pressure Measurement Range:  10 to 1100 mbar

Datasheet
